Folding Telescopic Boom Ship Crane 1T10M Hydraulic System Lightweight
Folding and Telescopic Boom Ship Crane 1T10M Hydraulic System Lightweight shape
Product description
OUCO provides Folding and Telescopic boom marine cranes with a lifting point of 1T10M.
Folding and Telescopic boom marine cranes are often used for general cargo loading and unloading and other handling operations at sea.
On various ship types and offshore installations. Customize different boom lengths according to your required specifications and choose different lifting capacities to suit different sea conditions and working conditions.
All OUCO series cranes can be equipped with the international approvals you need, in addition we also offer different accessories and grades approved by classification societies.
Main Features and advantages
1. Special design, suitable for more scenes.
2. It occupies a small area and does not require too much space on the deck of the ship.
3. Deliver you a complete assembly, ready to be installed on the vessel
4. The structure is convenient for regular maintenance, maintenance and repair
5. 24-hour after-sales service support.
Technical Specification
| SWL | 1T10M |
|
MAX. WORKING RADIUS
|
10M |
| MIN. WORKING RADIUS | 3M |
| HOISTING SPEED | 0-12M/MIN |
| HOOK TRAVEL | 25m |
| SLEWING SPEED | 0.8R-1R/MIN |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~35S |
| LUFFING ANGLE | 0-75° |
|
DESIGN TEMPERTURE
|
-20 - +45 ° |
| WORKING CONDITION | TRIM ≤2° |
| HEEL ≤5° | |
| DEAD WEIGHT | 2700KG |

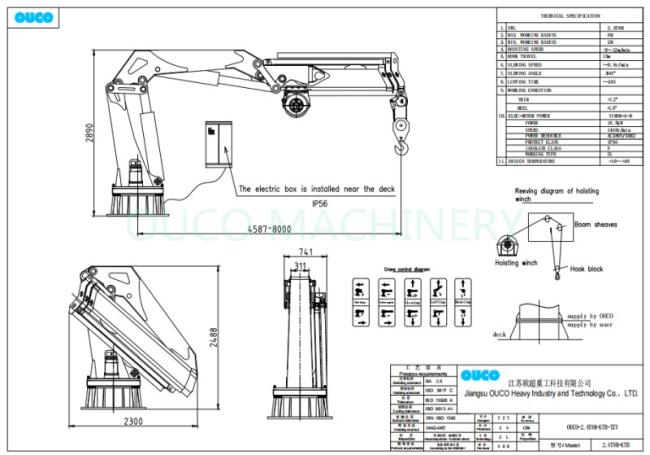

General Arrangement

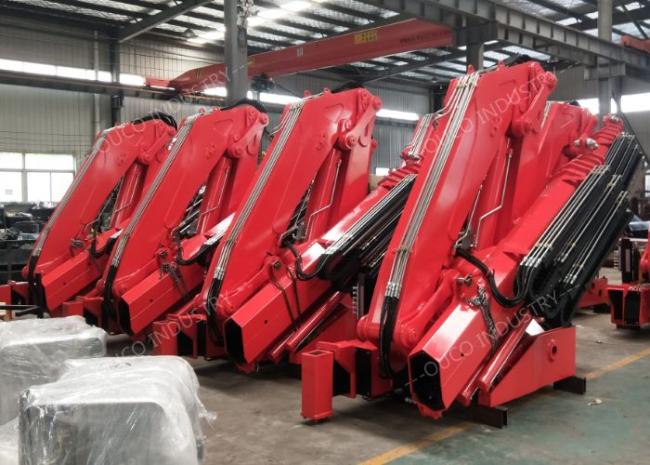

Product Picture
For more details, please feel free to contact us.
