Fiber Optic Splice Protection sleeve , Single Optical Fiber Fusion Splice Protectors

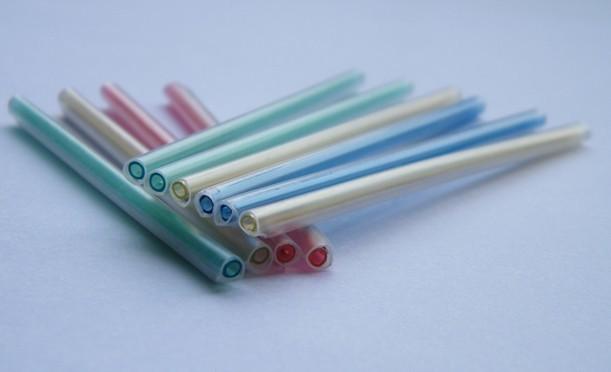

Single Optical Fiber Fusion Splice Protectors
Applications:
Consist of a rod of stainless steel, hot fusion tubing and cross-linked polyolefin. To rebuild the coating of fiber, providing mechanical strength at the fusion joint area and keeping optical transmission properties.
Characteristics:
Moisture resistant and environmental protection
Clear sleeve make it easy to detect splice before shrinkage
Easily to use and avoid any damages to the optical fiber during installation
Color optical fiber splice protector is very convenience for installation
Operating temperature range
Operating temperature range:
Operating temperature:-45℃~100℃/-45℃~135℃
Minimum shrink temperature: 80℃
Minimum fully recovery temperature:120℃
| Fusion tube(D) | Steel rod(D) | |||||||
|
Part |
Item |
O.D. after |
Length |
I.D. |
Length |
O.D. |
Length |
Package |
| Larger Sleeves | ||||||||
| FOSP-61 | 30151561 | 3.0±0.1 | 60 | 1.5 | 61 | 1.5 | 56 | 100 |
| FOSP-60 | 30151560 | 3.0±0.1 | 60 | 1.5 | 60 | 1.5 | 55 | 100 |
| FOSP-60B | 28151360 | 2.8±0.1 | 60 | 1.3 | 60 | 1.5 | 56 | 100 |
| FOSP -45 | 30151545 | 3.0±0.1 | 45 | 1.5 | 45 | 1.5 | 41 | 100 |
| FOSP -40 | 30151540 | 3.0±0.1 | 40 | 1.5 | 40 | 1.5 | 36 | 100 |
| FOSP -23 | 30151523 | 3.0±0.1 | 23 | 1.5 | 23 | 1.5 | 18 | 100 |
| Standard Sleeves | ||||||||
| FOSP -61M | 26121260 | 2.6±0.1 | 60 | 1.3 | 60 | 1.2 | 56 | 100 |
| FOSP -45M | 26121245 | 2.6±0.1 | 45 | 1.3 | 45 | 1.2 | 41 | 100 |
| FOSP -40M | 26121240 | 2.6±0.1 | 40 | 1.3 | 40 | 1.2 | 36 | 100 |
| FOSP -30M | 26121230 | 2.6±0.1 | 30 | 1.3 | 30 | 1.2 | 26 | 100 |
| FOSP -25M | 26121225 | 2.6±0.1 | 25 | 1.3 | 23 | 1.2 | 21 | 100 |
| Mini Sleeves | ||||||||
| FOSP-40T-S | 15070540 | 1.5±0.1 | 40 | 0.5 | 40 | 0.7 | 39.5 | 100 |
| FOSP -40TS | 19071040 | 1.9±0.1 | 40 | 1.2 | 40 | 0.7 | 39.5 | 100 |
| FOSP -60T | 20100560 | 2.0±0.1 | 60 | 0.5 | 60 | 1.0 | 56 | 100 |
| FOSP -40T | 20100540 | 2.0±0.1 | 40 | 0.5 | 40 | 1.0 | 36 | 100 |
| FOSP -60A | 24101460 | 2.4±0.1 | 60 | 1.4 | 60 | 1.0 | 56 | 100 |
| FOSP -40A | 24101440 | 2.4±0.1 | 40 | 1.4 | 40 | 1.0 | 36 | 100 |
| FOSP -45A | 24101445 | 2.4±0.1 | 45 | 1.4 | 45 | 1.0 | 41 | 100 |
| Micro Sleeve | ||||||||
| FOSP -40S | 14050540 | 1.4±0.1 | 40 | 0.5 | 40 | 0.5 | 39.5 | 100 |
| FOSP -25S | 14050525 | 1.4±0.1 | 25 | 0.5 | 25 | 0.5 | 24.5 | 100 |
| FOSP -25SS | 14050425 | 1.4±0.1 | 25 | 0.4 | 25 | 0.5 | 24.5 | 100 |
| FOSP -18S | 14050518 | 1.4±0.1 | 18 | 0.5 | 18 | 0.5 | 17 | 100 |
| FOSP -15S | 14050515 | 1.4±0.1 | 15 | 0.5 | 15 | 0.5 | 15 | 100 |
| FOSP -10S | 14050510 | 1.4±0.1 | 10 | 0.5 | 10 | 0.5 | 10 | 100 |
