Singlemode Standard Optical Fiber Coupler CWDM LGX 1310/1550 Nm Aluminum Alloy Materials
Price:
Negotiation
MOQ:
1pc
Delivery Time:
5-8working days
Brand:
Blueto
Product Description

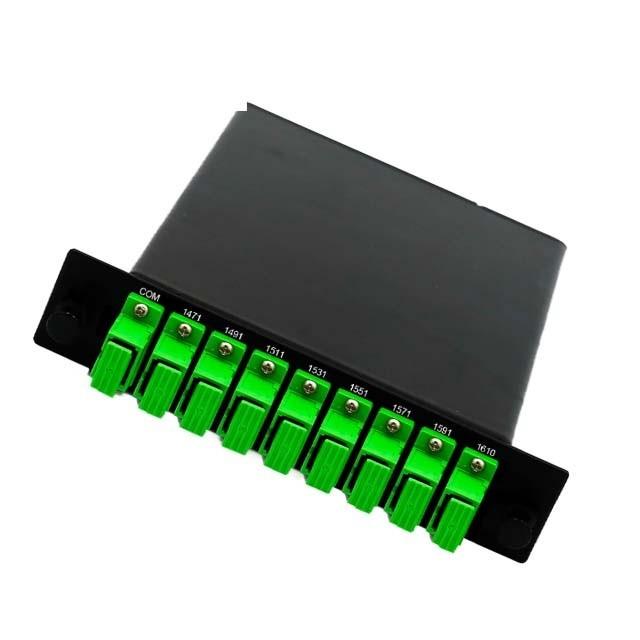

Optical Fiber Splitter Singlemode Standard CWDM LGX 1310/1550 nm SC/APC connector
Filter WDM component is based on proven thin-film technology, just same as CWDM device. And it can be used in CATV module and other optical system.
IHfiber is a company professional in passive optical components manufacture, we are committed to provide the excellent products to customers.
Features
- Wide pass band
- Low insertion loss
- Low PDL
- High isolation
- High stability and reliability
Parameter:
| Parameter | Specification | ||
| Operating Wavelength(nm) | 1310±40,1550±40 | ||
| Transmission Center Wavelength | 1310, 1550 | ||
| Max. Insertion Loss (dB) | Transmission | 0.6 | |
| Reflection | 0.5 | ||
| Min. Isolation (dB) | Adjacent channel | > 30 | |
| Non-adjacent channel | > 40 | ||
| Reflection | > 15 | ||
| Max. PDL (dB) | 0.1 | ||
| Min. Directivity (dB) | 55 | ||
| Min. Return Loss (dB ) | 50 | ||
| Max. PMD (ps) | 0.1 | ||
| Fiber Length (m) | 1.0 or Customer request | ||
| Fiber Type | SMF-28e | ||
| Fiber Packaging | Bare fiber or 900um loose tube | ||
| Thermal Stability (dB/°C) | 0.005 | ||
| Max. Power handling (mW) | 500 | ||
| Operating Temperature(°C) | -10~70 | ||
| Storage Temperature(°C) | -40~85 | ||
