High Power Laser Silica Fiber Optic Patch Cord SMA905 SMA906 400nm 2200nm
Price:
Negotiation
MOQ:
1pc
Delivery Time:
4-6working days
Brand:
Blueto
Product Description

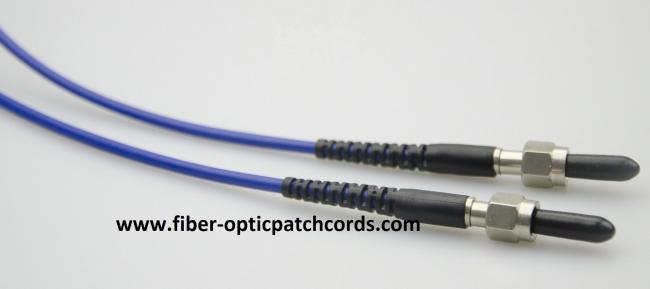

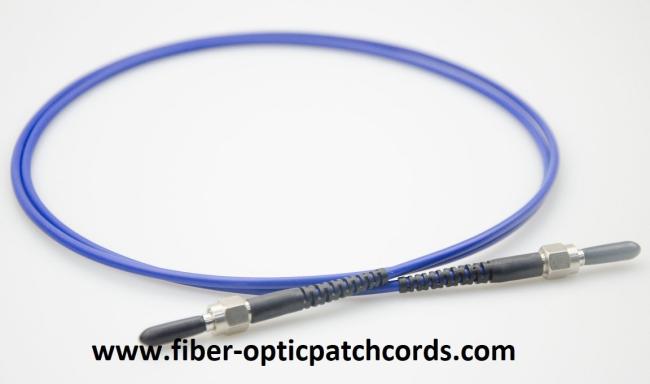

VIS-NIR Energy High Power Laser Quartz Fiber Optic Patch Cord SMA905-SMA905 400-2200nm
SMA Fiber
Precision SMA905 fiber optic connector or with an air gap protection improved metal SMA-905 connector, end precision grinding large core diameter fiber optic energy, to meet the general semiconductor laser / modules and output energy of the laser transmission in a low-power solid-state lasers; connection head of internal processes can be used without glue ring protection technology, further enhance the cooling effect and increased energy fiber life, meet laser welding, cutting and other high-power transmission needs.
Parameters:
| Parameter | Specification |
| Core Diameter(μm) | 100 200 300 400 600 800 |
| CladdingDiameter(um) | 125 220 330 440 660 840 |
| Core Material | Pure Quartz |
| Cladding Material | Quartz |
| Coating Material | Acrylate Coating |
| Core:Cladding | 1:1.1 or 1:1.05 |
| NA(Numerical Aperture) | 0.20-0.22 |
| Working Band(nm) | 400-2200 |
| Fiber Length(M) | 1M,etc. |
| Operating Temperature (℃) | -40℃~+85 |
