ZrO2 62 - 66% Zinano Ceramic Blasting Media B60 125 - 250μM For Stainless Steel
ZrO2 60-66% Zinano Ceramic Bead Blasting B60 125-250μm for Stainless Steel
1. Product Description of Ceramic Bead Blasting
Ceramic Bead is one clean blasting media,which will generate little dust in the whole blasting process,then it can replace glass beads in most applications.
2. The Comparation between Ceramic Beads and Glass Beads
| Item | Ceramic Bead Blasting | Glass Beads |
| Chemical Index | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% |
SiO2:>65%,Na2O<14.0% Fe2O3:0.15% |
| Vickers Hardness | ≥700 HV | ≥560HV |
| True Specific Gravity | ≥3.85 g/cm3 | ≥2.5g/cm3 |
| Usage | Blasting Media | Blasting Media |
| Ferrous Contamination | No Ferrous | No Ferrous |
| Dust Pollution | Little | Large |
| Recyclable Times | Multiple | One time or twice |
| Power consumption | Low | Low |
| Equipment Wear Rate | Low | Low |
| Blasting Effect | High finish No discoloration |
High finish White discoloration |
| Particle Size Comparation | |
| Ceramic Beads | Glass Beads |
| B20: 0.600-0.850mm | 30#:0.425-0.850mm |
| B30:0.425-0.600mm | 40#: 0.425-0.600mm |
| B40:0.250-0.425mm | 60#:0.300-0.425mm |
| B60:0.125-0.250mm | 80#:0.150-0.300mm |
| B80:0.180-0.250mm | 100#:0.106-0.212mm |
| B100:0.125-0.180mm | 120#:0.106-0.150mm |
| B120:0.063-0.125mm | 150#:0.075-0.150mm |
| B150:0.053-0.125mm | 180#:0.075-0.106mm |
| B170:0.045-0.090mm | 220#:0.053-0.106mm |
| B205: 0-0.063mm | 280#:0.045-0.075mm |
3. Main Features of Ceramic Bead Blasting
Long servive life
The life of ceramic bead is about 20 times compared with the one of galss beads
High Efficiency and consistent Blasting Effect
The elastic modulus of cearamic bead is 330GPa, which is much higher than the 60 GPa of glass beads.
It is not easy to be broken down,people do not need to refuel the beads frequently,then the beads in the
blasting machine will maintain the same quantity and shape,which will achieve the more consistent blasting
effect.
Better Visual Effect
The workpiece treated by ceramic bead will achieve shinny visual effect and lower roughness,it will also greatly
reduce the working time for mold repairing and polishing.
Lower energy consumption
Ceramic bead has higher density and modulus of elasticity and better impact energy,when achieving the same
blasting effect,it will need lower energy consumption and blasting pressure,finally reducing the production cost.
4. Main Application of Ceramic Bead Blasting

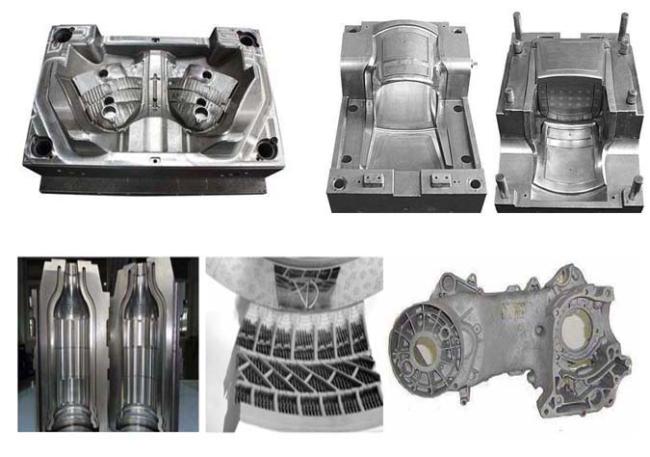

Mold cleaning and maintenance
Surface finish for 3C products such as the metal surface and built-in parts
Deburring for circuit board in electronic industry
Anti-fatigue and strengthening treatment of shock absorber spring in automotive and turbine industry
Manufacturing and maintenance of titanium alloy materials in aerospace industry
5. Why Choose Us?
Professional Manufacturer of ceramic beads,annual output over 3000mts;
Equipped the most advanced production line,testing equipment, as well as professional technical staffs
and 7*24h technical support;
Strict quality control and quality assurance, products will be inspected by each shipment,even for the free
sample in small quantity;
Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;
Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc
Products in good quality & stable performance,competitive price,flexible payment terms,prompt delivery etc.
