ISO9001No Ferrous Contamination Ceramic Bead Blasting B80 For Aluminum Alloy ISO9001
No Ferrous Contamination Ceramic Beads Blasting Media 20-B60,B80-B100,B120-B170,B205,B400,B505 for Aluminum Alloy
1. Product Description of Ceramic Beads Blasting Media
Ceramic beads is one popular blasting media,which is widely used in the surface treatment of aluminum parts.
After blasting, the surface of aluminum parts will achieve a certain degree of cleanliness and roughness, its
mechnical properties and anti-fatigue strength will be improved.
Ceramic beads is also used for surface finish of 3C products,light alloy,stainless steel,etc.
2. The Main Technical Data of Ceramic Beads Blasting Media
| Main Index of Ceramic Bead Blasting | ||
| ZrO2 | SiO2 | Al2O3 |
| 60-66% | 25-30% | 7-13% |
| Vicker Hardness | True Specific Gravity | Bulk Density |
| ≥700 HV | ≥3.85 g/cm3 | 2.3g/cm3 |
| Particle Size | ||
| B20 | B30 | B40 |
| 600-850μm | 425-600μm | 250-425μm |
| B60 | B80 | B100 |
| 150-300μm | 125-212μm | 106-180μm |
| B120 | B170 | B205 |
| 63-125μm | 45-90μm | 0-63μm |
| B400 | B505 | / |
| 30-63μm | 0-30μm | / |
3. Main Features of Ceramic Beads Blasting Media
Good sphericity,smooth surface,high hardness;
Fine microstructure,low breakdown rate;
More consistent blasting effect;
Low disposal cost for solid waste;
No hidden danger of silicosis;
No contamination &Low damage to the blasting equipment & workpieces.
4. Main Applications of Ceramic Bead Blasting Media
Surface Cleaning for impurity removal, rust removal,paint removal,scale removal,carbon deposition,weld bead,
machining tool marks etc;
Surface cleaning for glass-bottle molds,plastic molds,tire molds,die casting etc.;
Surface Finish for metal surface of 3C products and its built-in parts as well as accessories;
Surface Finish for Mechnical parts,medical instruments,golf head etc.
Pretreatment for electroplating,painting,anodizing etc.
5. Why choose Zirnano Ceramic Beads?
Higher clearliness
Our ceramic bead are screened more than six times and blow-cleaning under high temperature,
which provides higher clearliness and ensures it to be work normally in humid weather;
More Competitive price/performance Ratio
Our ceramic beads plant is located in mountain area,there is lower labor cost & environmental cost,then the
product cost is lower and more competitive than the one of others’ plants.
More stable quality
Our ceramic beads is made by high quality zircon sand according to stricter formula ratio,all the shipment
will be sampled and tested before loading.

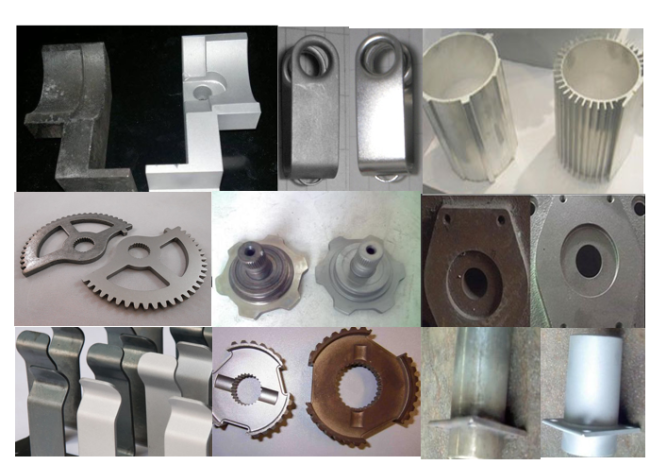

6. The Comparation Effect before and after Sandblasting by Ceramic Beads

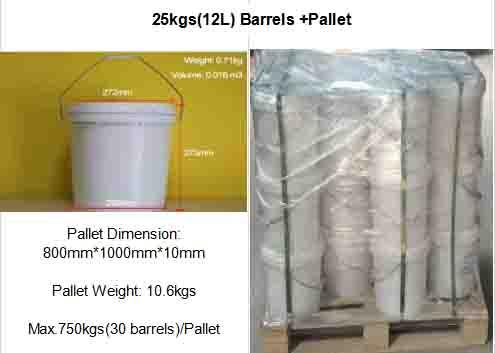

7. Package of Ceramic Beads Blasting Media:
2*12.5kg barrel+ Carton Box+Pallet
25kg barrel+ pallet
Special package can be customized
