B170 size 0.045-0.090mm Wear Resistance Ceramic Beads Sandblasting Media
Ceramic beads sandblasting media no dust and easy to clean VS Glass Beads
DESCRIPTION
Ceramic beads is an excellent sandblasting media with main chemical content is ZrO2 60% Min.,with good wear resistance and impact resistance.
It is also featured with more fine sizes like B205 (0.000-0.063 mm), B400 (0.030-0.063 mm), B505 (0.010-0.030 mm)
The satin finish of the processing metal work pieces surface will be with lower roughness and higher finish.
Ceramic beads are used in blasting systems for deburring at the surface finishing of components consisting of stainless steel, titanium alloy and aluminum.
| Technical Data | |||
| Components | Content | CAS No. | EC No. |
| ZrO2 (Zirconium dioxide) | 60-68% | 1314-23-4 | 215-227-2 |
| SiO2 (Silicon dioxide) | 25-30 | 60676-86-0 | 262-373-8 |
| Al2O3 (Aluminum oxide ) | 7-13% | 1344-28-1 | 215-691-6 |
| Manufacturing Method | Melting in above 2000℃ furnace | ||
| True Density | 3.85 g/cm3 | ||
| Bulk Density | 2.3g/cm3 | ||
| Vicker Hardness | 700HV | ||
| Sizes for Sand Blasting | |||
| Bead Size | Size range | Bead Size | Size range |
| B20 | 0.60-0.85 mm | B120 | 0.063-0.125 mm |
| B30 | 0.425-0.60 mm | B125 | 0.000-0.125 mm |
| B40 | 0.24-0.425 mm | B170 | 0.045-0.090 mm |
| B60 | 0.125-0.25 mm | B205 | 0.000-0.063 mm |
| B80 | 0.18-0.25 mm | B400 | 0.030-0.063 mm |
| B100 | 0.125-0.18 mm | B505 | 0.000-0.030 mm |
| Sizes for Shot Peening | |||
| Z850 | 0.85-1.18 mm | Z210 | 0.21-0.30 mm |
| Z600 | 0.6-0.85 mm | Z150 | 0.15-0.21 mm |
| Z425 | 0.425-0.60 mm | Z100 | 0.10-0.15 mm |
| Z300 | 0.30-0.425 mm | ||
FEATURES
Features--Ceramic bead VS Glass Beads
Disadvantages of Glass beads Advantage of Ceramic beads - Easy to fragile, uneven finish effect and with dust
Good toughness, not easy to be broken,
uniform finish effect. Service Life time is 8-20 times longer than glass beads- Surface turn white, unnatural metallic luster
Natural metallic luster - A high rate of dirt adhesion, contamination of the surface
No dust, no metal contamination - Difficulties to clean and rinse,
Easy to clean - Corrosion can occur easily
No corrosion - 1-2 time
Multiple recycle use more than 20 times
APPLICATION
- · Sandblast cleaning for metal tools
- · Descaling and deburring
- · Alu alloy and Stainless steel surface satin finishing
- · Painting/ coating stripping and pre treatment before coating
The ceramic beads is applicable to use in the mobile open sandblasting machine.
CONTACT US

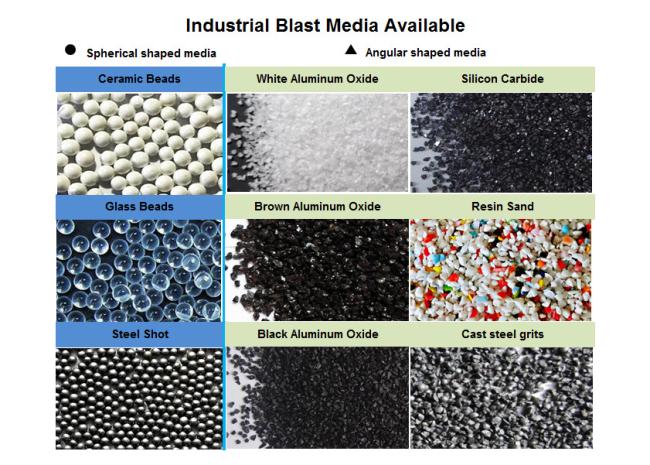

Other main sandblasting abrasive available
01. Ceramic Beads
02. Glass Beads
03. Steel Shot
04. Brown fused alumina
05. White fused alumina
06. Black fused alumina
We can provide MSDS, COA, CERTIFICATE OF ORIGIN, etc.
Contact us to get more details about ceramic beads and other sandblasting media, you can get very fast response and professional service.
