B40 0.425mm Ceramic Beads Abrasive Blasting Media For Stainless Steel Plate
B40 size 0.250-0.425mm ceramic beads blasting media for stainless steel plate
1. Description of Ceramic Beads blasting media
Ceramic beads is a ceramic media blasting abrasive, made of zircon sand as the main raw material, melted in a high-temperature furnace above 2000 degrees, then blow into beads and finally sieved into different particle sizes from B20 to B505.
Ceramic beads has below features:
- Good impact strength and toughness
- High hardness and surface smoothness
- High abrasion resistance and not easy to be broken
So it can be recycled and used repeatedly, and has a high utilization rate, which is 15-20 times that of glass beads.
It has a wide range of particle size, strong optionality, and can be matched with various types of sandblasting machines.
It is also the most environmentally friendly green material of sandblasting abrasive.
Ceramic beads is widely used for sandblasting for stainless steel and aluminium plate and profile.
2. Main Technical Data
| Commodity | | |
| Chemical Index | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% | |
| Physical Index | Vickers Hardness ≥700 HV Bulk Density≥2.3g/cm3 True Gravity: 3.85g/cm3 Process: Melting | |
- PARTICLE SIZE OF B40
| Size | Screen Size | The coarsest grain | Screen Size | Coarse grain | Screen Size | Mixed Grain | Screen Size | Fine Grain |
| Screen overflow | Screen overflow | Screen overflow | Screen underflow | |||||
| B40 0.250-0.425mm | 25# | 0 | 40# | ≤5% | -40#~+60# | ≥75% | -60# | ≤5% |
| 0.71mm | +0.425mm | -0.425mm~ +0.25mm | -0.25mm |
| Other Particle Sizes Available | B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150: 0.053-0.106mm | |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm | |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm | |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm | |
| B100: 0.106-0.180mm | B505: 0.000-0.030mm | |
| Note: Special specification can be customized | ||
3. Applications:
Ceramic beads is widely used for sandblasting of stainless steel plates.
Stainless steel sandblasting plates is processed on the surface of the board with ceramic beads through an automatic sandblasting machine to make the surface of the board present a fine bead-like sand surface. After sandblasting, it undergoes a complicated process to make different surface colors.
The available colors of the stainless steel sandblasting plates are: light golden yellow, golden yellow, sapphire blue, black gun color, brown, young color, zirconium gold, bronze, rose.
The stainless steel sandblasting plate not only retains the excellent mechanical properties and corrosion resistance of the stainless steel plate, but also has a colorful and beautiful color.
4. Applicable Equipment

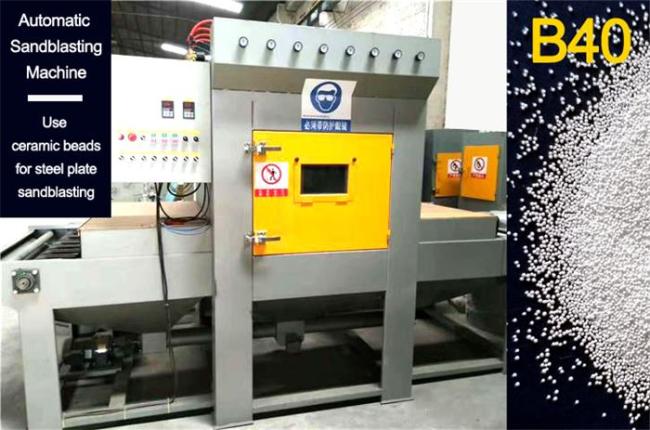

AUTOMATIC SANDBLASTING MACHINE
If you need ceramic beads blasting media, don't hesitate to contact us.
