Chinese Brand Original Xugong High Quality Single Drum Vibration Roller XS223J Low Price

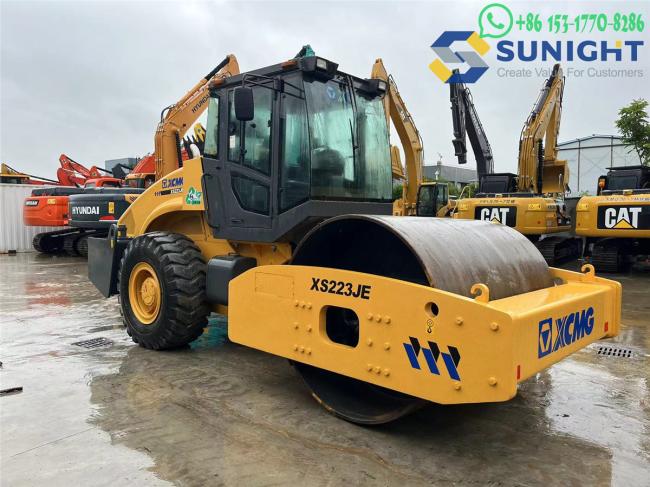

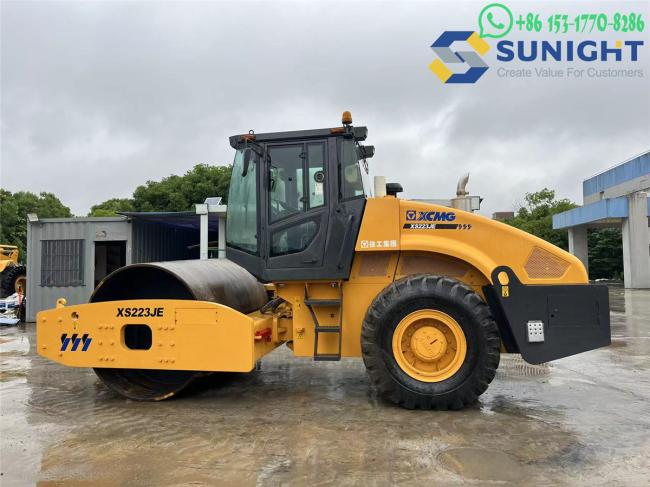

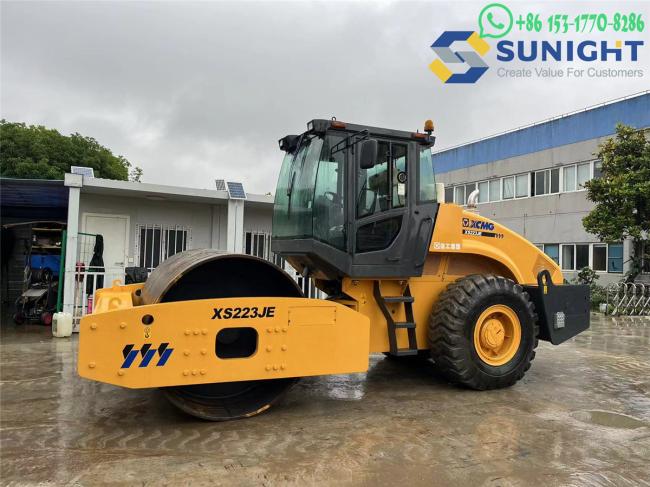

The XCMG XS223J is a highly capable single-drum vibratory road roller, often used in various road construction, foundation, and large-scale compaction projects. It features advanced technology, strong performance, and an ergonomic design for efficient operation.

XCMG XS223J Road Roller - Specifications

Engine:

• Engine Model: Cummins 6BTAA5.9-C175 or equivalent (depending on region)
• Engine Type: Turbocharged, water-cooled, 6-cylinder diesel engine
• Rated Power Output: 129 kW (173 HP) @ 2,200 RPM
• Emission Standards: Complies with Tier 2/Stage II emission standards or higher based on the market.

Performance:

• Operating Weight: 22,000 kg (22 tons)
• Static Linear Load: 345 N/cm
• Vibration Frequency: 28/35 Hz (dual frequency)
• Centrifugal Force:
  • High Amplitude: 350 kN
  • Low Amplitude: 235 kN
• Amplitude:
  • High: 1.95 mm
  • Low: 0.95 mm
• Travel Speed: Up to 12 km/h (7.5 mph)
• Climbing Ability: 30% gradeability

Dimensions:

• Overall Length: 6,530 mm
• Overall Width: 2,450 mm
• Overall Height: 3,400 mm
• Drum Width: 2,130 mm
• Drum Diameter: 1,670 mm
• Ground Clearance: 440 mm
• Wheelbase: 3,400 mm

Hydraulic System:

• Features a dual-frequency and dual-amplitude vibration system for optimized compaction.
• Advanced hydraulic drive and control for smoother operation and increased efficiency.

Key Features:

1. Powerful Compaction:

   • Offers high centrifugal force and adjustable vibration frequencies for effective compaction on various soil types, including granular soils and asphalt.
   • Dual amplitude and frequency options for different compaction depths.

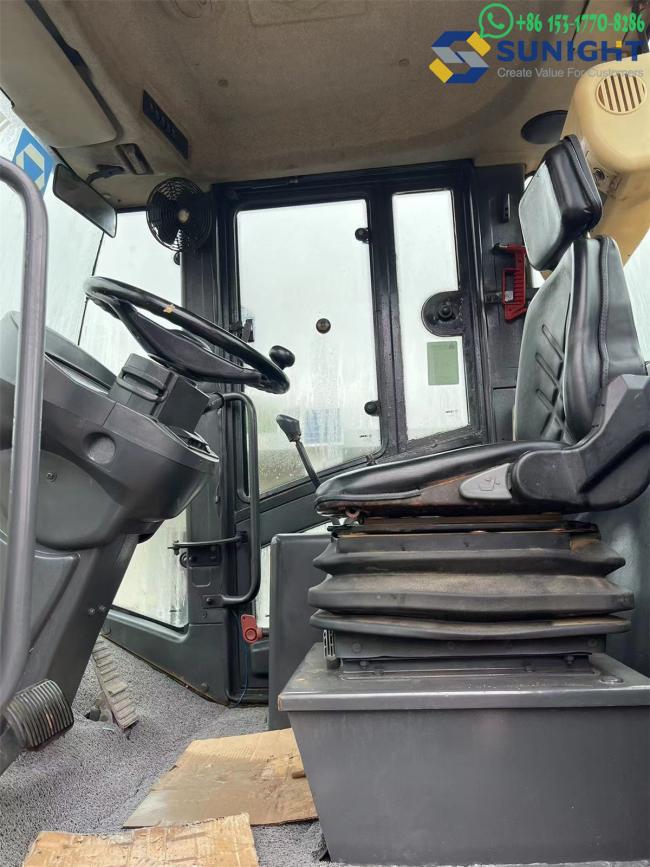

2. Comfortable Operator Station:

   • A spacious cabin designed for better visibility and comfort.
   • Includes air conditioning, ergonomic controls, and a high-visibility display for easy monitoring of machine performance.

3. Fuel Efficiency:

   • Low fuel consumption due to the high-efficiency Cummins engine and optimized hydraulic system.

4. Durable Design:

   • Reinforced steel drum with excellent wear resistance.
   • The rugged frame ensures durability in challenging working conditions.

5. Safety:

   • ROPS/FOPS-certified cab for the safety of the operator in hazardous environments.
   • Emergency stop functions, secure ladder and handrails for safe access to the cabin.

6. Ease of Maintenance:

   • Centralized lubrication system for easy maintenance.
   • Easily accessible engine and hydraulic components for quick servicing.

Applications:

• Road Construction: Ideal for compaction of base materials, sub-bases, and asphalt layers on roads, highways, and expressways.
• Airport Runways: Used for compaction of large, flat surfaces like airport runways and parking areas.
• Foundation Compaction: Effective in preparing foundations for heavy-duty structures and buildings.
• Dams and Embankments: Suitable for embankment and dam construction where large-scale compaction is required.

Advantages of the XS223J:

• High Performance: Equipped with a powerful engine and dual-frequency vibration system, making it suitable for various soil conditions and compaction depths.
• Comfort and Safety: Operator comfort is a key feature with a spacious cabin and safety measures in place to protect during operation.
• Long-lasting Durability: Built for tough conditions, reducing downtime and increasing productivity.
• Fuel Efficiency: The engine's optimized performance offers excellent fuel savings, reducing the overall operational costs.
