IGBT 10kg 20kg 30kg 50kg 100kg 150kg Copper Iron Scraps Smelting Tilting Induction Melting Furnace
Price:
USD 6500-7500 per set
MOQ:
1 set
Delivery Time:
5-7 working days
Brand:
Lanshuo
Product Description

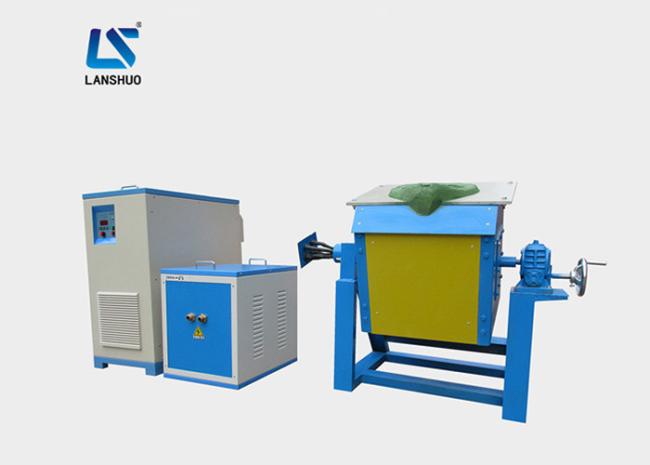

110kw IGBT small tilting copper stainless steel induction melting furnace price
1. Melting Capacity of LSZ series Induction Melting Furnace:
|
||||||||||||||||||||||||||||||||||||||||||||||||
2. Feature of Induction Melting Furnace:
(1) IGBT module imported from .
(2) Higher reliability and lower maintenance cost.
(3) 100% Duty cycle. 24-hour continuous working is allowed at maximum output power.
(4) Display of heating power, heating current and oscillation frequency.
(5) Simple to install. Installation can be done by unprofessional persons very easily.
(6) Convenient to change crucibles for different melting material.
(7) Continuously heating ability for 24 hours.
3. Main technical parameters of LSZ series induction melting furnace:
| Model | Power | Input current | Voltage | Oscillation frequency |
Connecting wire |
Control switch |
| LSZ-15 | 15kw | 18A | 3-phase 380 V, 50/60 Hz | 1-15KHz | 10mm2 | 3*40A |
| LSZ-25 | 25kw | 36A | 10mm2 | 3*60A | ||
| LSZ-35 | 35kw | 57A | 16mm2 | 3*80A | ||
| LSZ-45 | 45kw | 80A | 35mm2 | 3*120A | ||
| LSZ-70 | 70kw | 110A | 50mm2 | 3*150A | ||
| LSZ-90 | 90kw | 140A | 75mm2 | 3*225A | ||
| LSZ-110 | 110kw | 160A | 90mm2 | 3*225A | ||
| LSZ-160 | 160kw | 240A | 120mm2 | 3*300A |
Certificates:
