160KW Electric Induction Smelting Furnace Machine Mini Small Steel Iron Aluminum Copper Melting Furnace
Price:
9000USD-11000USD
MOQ:
1 SET
Delivery Time:
5-8WORKING DAYS
Brand:
ZHENGZHOU LANSHUO
Product Description
Main features:
1. IGBT module and inverting technologies.
2. Energy saving.
3. Safe and reliable: 100%duty cycle, 24hrs continuous working is allowed at max power output.
4. Easy to install and operate. Installation can be done by new workers very easily.
Main parameters:
| Voltage | 3 phase 380V, 50/60HZ |
| Power | 160kw |
| Input current | 240A |
| Oscillation frequency | 1-20KHZ |
| Duty cycle | 100% |
| Cooling water flow | ≥ 0.2Mpa, ≥20L/min |
| Power supply cabinet dimension(L*W*H) | 1400*900*1300mm |
| Capacitor cabinet dimension(L*W*H) | 1100*900*1050mm |
| Power supply cabinet and furnace weight | 360kg |
| Capacitor cabinet weight | 190KG |
| Melting capacity | 150kg per batch for steel/iron/stainless steel |
| 250kg per batch for copper/gold/silver | |
| 150kg per batch for aluminum/aluminum alloy | |
| Melting time | 35-50min for steel/iron/stainless steel |
| 30-40min for copper/gold/silver | |
| 40-50min for aluminum/aluminum alloy |
Accessories:
1 piece connecting cable between the power supply cabinet and the capacitor cabinet;
1 piece connecting cable between the capacitor cabinet and the furnace;
1 piece remote control cable;
1 piece spare crucible;

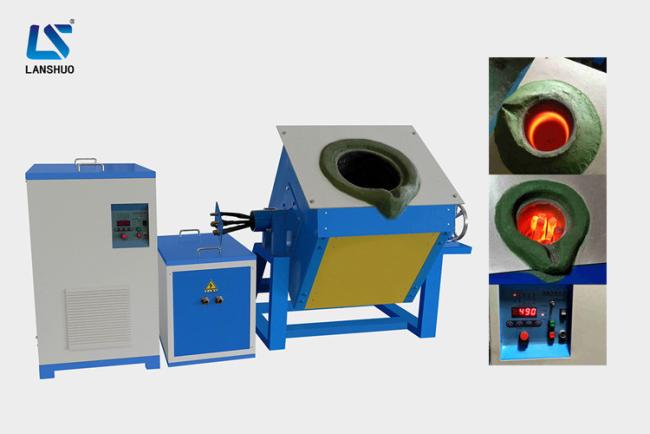

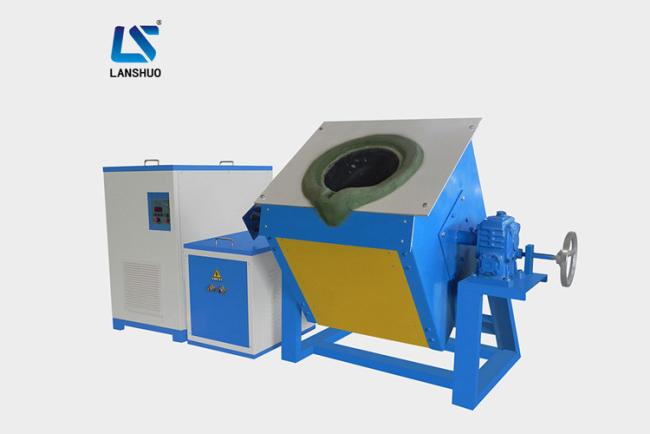

Pictures of LSZ-160:
CE:
