3T Capacity 2000KW Large Melting Furnace For Iron Aluminum Copper Scrap

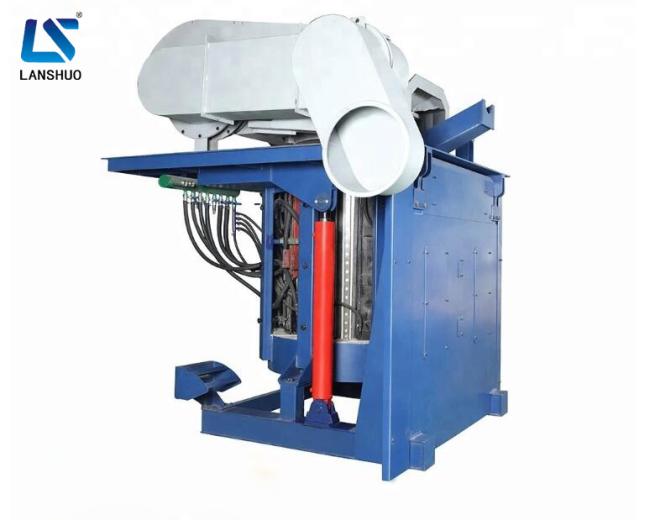

KGPS-3T 2000KW Large capacity melting furnace for Iron Aluminum Copper scrap
1. Advantage of Steel Shell Melting Furnace:.
1. Turn on & turn off the smelter easily,and power failure will not affect the service life of electric furnace.
2. Adopt constant power to control the circuit,maintain constant power while melting and keep faster melting rate.
3. Set up over voltage, over current and water deficient protector, and run safely.
4. The motherboard adopts CAD technology, integrated circuit board,low-fault-rate,easy-manipulating, effortless maintenance.
5. Zero voltage starts up softly, high initial power, don´t impact on the electric network.
6. Apply to melting ferrous metal and non-ferrous metal like copper, aluminum, zinc,steel, iron, stainless steel etc.

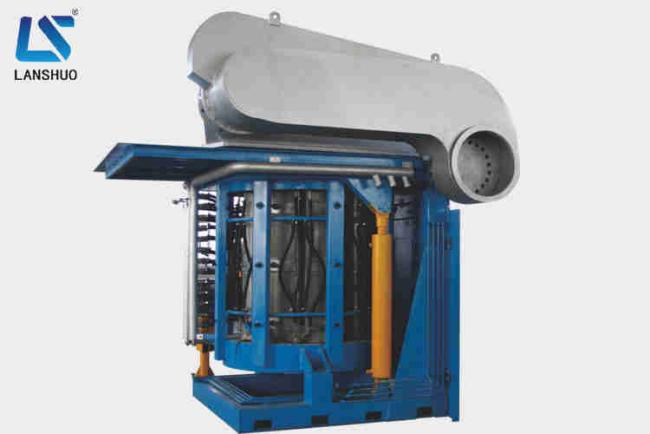

2. Technical Parameter of Steel Shell Induction Melting Furnace:
|
Furnace Model |
Rated Capacity |
Rated Power |
MF Frequency |
Power Input Voltage |
MF Output Voltage |
Melting Time |
Electricity Consumption |
Transformer Capacity Required |
|
T |
KW |
KHZ |
V |
V |
Minutes/T |
KWH/T |
KVA |
|
|
KGPS-250 |
0.25 |
250 |
1 |
380 |
750 |
65 |
680 |
300 |
|
KGPS-400 |
0.5 |
400 |
1 |
380 |
1600 |
65 |
680 |
400 |
|
KGPS-500 |
0.75 |
500 |
1 |
380 |
1600 |
65 |
650 |
600 |
|
KGPS-700 |
1 |
700 |
0.7 |
660 |
2400 |
60 |
640 |
800 |
|
KGPS-1000 |
1.5 |
1000 |
0.7 |
660 |
2400 |
60 |
640 |
1000 |
|
KGPS-1400 |
2 |
1400 |
0.5 |
750 |
2400 |
65 |
640 |
1800 |
|
KGPS-2000 |
3 |
2000 |
0.5 |
950 |
3200 |
65 |
640 |
1800 |
|
KGPS-3000 |
5 |
3000 |
0.5 |
950 |
3200 |
70 |
620 |
2500 |
|
KGPS-4000 |
6 |
4000 |
0.5 |
950 |
3600 |
70 |
600 |
3150 |
|
KGPS-4500 |
8 |
4500 |
0.3 |
950 |
3600 |
70 |
580 |
4000 |
|
KGPS-6000 |
10 |
6000 |
0.3 |
950 |
3600 |
65 |
550 |
5000 |
|
KGPS-8000 |
12 |
8000 |
0.3 |
950 |
5000 |
60 |
520 |
6300 |
|
KGPS-9000 |
15 |
9000 |
0.3 |
950 |
5000 |
70 |
500 |
8000 |
3. Large Induction Melting Furnace Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing steel;
(3) gold, silver, platinum;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
