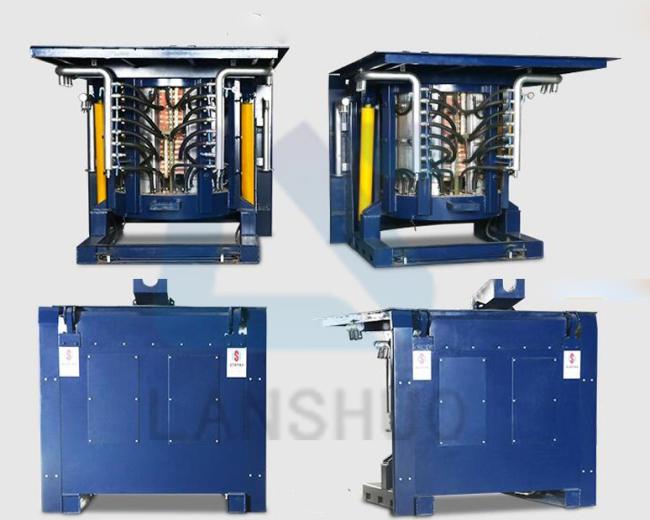

KGPS-3T 2000KW Large Heavy Steel Shell Induction Melting Furnace

1. Advantage of Steel Shell Melting Furnace:

1. With strong and durable, beautiful and generous furnace body.Especially for large capacity furnace which need the stronger steel structure .From the point of view of safety dumping has better adopt steel shell furnace.
2. Selenium steel made of magnetic yoke of the magnetic field lines generated by the induction coil has played the role of shielding emission to reduce the magnetic leakage so that it improves the efficiency and energy saving is 5%~8%.
3. The furnace cover reduces heat loss and improves the equipment safety.
4. Cyclone type smoke hood has excellent dust absorption , thermal insulation effect and take up a small space.
5. It has the bottom of the oxygen blowing, reducing carbon, slagging function

6) Electric induction melting, Steel aluminium alloy copper brass available.
7) All the smelting equipment&heating equipment has been certificated by ISO9001,SGS,CE.
8) Labor-saving and environmental protection,worker protection.
9) Temperature control system can realize the accurate control of the temperature and improve the product quality and qualified rate.
10) Engineers available to service overseas.

2. Brief Introudction of Steel Shell Induction Melting Furnace:

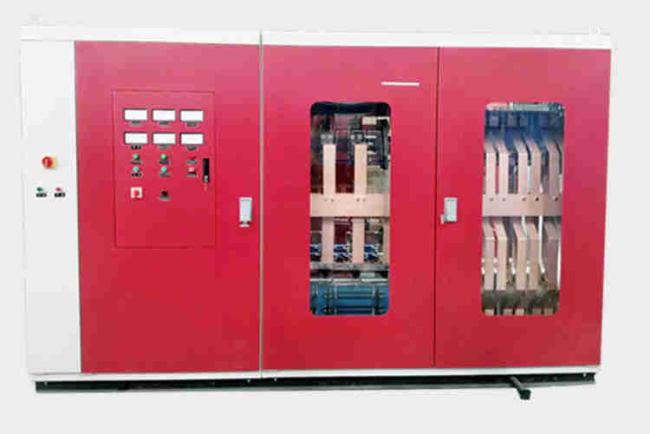

Our series resonant inverter medium frequency power supply can achieve that one furnace melting and the other furnace thermal insulation refining .So that this advanced technology achieves that one set of equipment is equivalent to two sets of equipment working at the same time.And the utilization rate of power transformer is very high.According to the theoretical calculation and field test, it can save half of the transformer capacity.Because of adopting SCR series rectifier , series resonant inverter it is with high power factor and keeps over 0.98 with high order harmonic wave pollution.It is no need to add reactive power compensation device and harmonic wave control device.The current of induction coils are small and the melting time is short.It can save electricity 20%.

3. Technical Parameter of Steel Shell Induction Melting Furnace:

4. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.
