0.25T 2000HZ 1600°C 200KW Induction Melting Furnace
200KW Industrial Aluminum scrap metal iron Stainless steel induction melting furnace
1. Main Features of induction melting furnace:
This kind of furnace has the advantages of high melting efficiency, good power saving effect, compact structure and strong overload capacity.The surrounding of the furnace is low temperature, smoke less, the working environment is good.Simple operation and reliable operation.Fast temperature heating-up, furnace temperature easy to control, high production efficiency.
1. The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength.
2. The thick T2 standard copper tube is taken use for induction coil to provides high melting efficiency.
3. Open type furnace hearth reduces moisture,and design cooling rings on the bottom, which extend the furnace lining life time.
4. The titling is controlled by reducer gear box. The remote control panel can set the furnace in any position when titling. The max tilting angle is 95 degrees.
2. Technical Parameter of Large Induction Melting Furnace:
| Model | KGPS-0.25T/200KW |
| Rated Power | 200kw |
| Rated Capacity | 0.25T |
| Matching transformer's capacity | 250KVA |
| Voltage | 380V, 50/60HZ |
| MF Frequency | 2000HZ |
| Medium Voltage | 750V Phase |
| DC Voltage | 500V Phase |
| DC Current | 200A Phase |
| Rated Temperature | 1600°C |
| Closed Loop Water Cooling Tower | LSN-20B |
3. Large Induction Melting Furnace Application:
1. Induction metal melting furnace mainly used for melting cast iron, cast steel , copper and aluminum alloy scrap for casting dies.
2. Induction metal melting furnace can also be used together with selfheated furnaces and electric arc furnace for heating orkeeping warm the molten iron and molten steel.
3. induction metal melting furnace is applicable to melt steel , cast iron , copper, aluminum and other metals.
4. induction metal melting furnace can be produced with different volume , such as 150kg ,250kg ,350kg ,500kg ,750kg ,1000kg ,2000kg etc...
5. induction metal melting furnace has 1650C operation temperature .
6. induction metal melting furnace will be matched with metal liquid ladle if customer need
4. Advantage of Large Induction Melting Furnace :

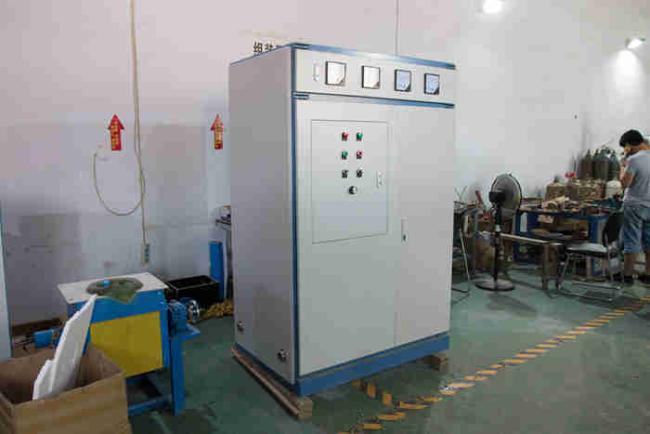

1. Power cabinet is adopted by Integrated digital circuit and well-know brands parts, the device have high reliability
2. Rapid heating, temperature easy to control, high production efficiency.
3. The water inlet and outlet of induction melting furnace body adopt water-cooled copper plate to improve the service life of furnace lining.
4. The top of induction melting furnace body is designed with sliding cover design, which makes it more convenient for maintenance personnel to maintain the furnace body.
5. Zero voltage starts up softly, high initial power, don´t impact on the electric network.
5. Large Induction Melting Furnace Packaging:
As for packing of KGPS induction melting furnace:
wooden / plywood cases and the furnace is packed with wrapping film and the case is filled with foam,for waterproof and shockproof.
As for shipping of KGPS induction melting furnace:
1. If you have a shipper in China, we can send the machines to him or her for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
