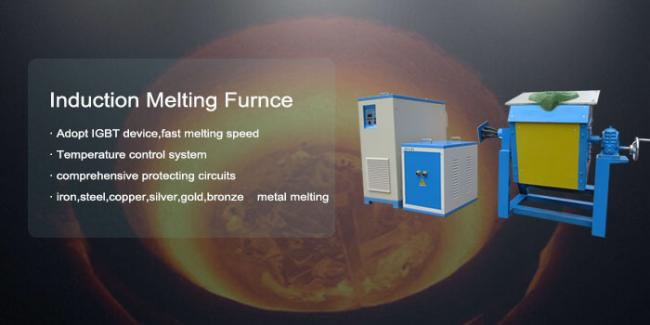

LSZ-160 IGBT Electric 160kw induction melting furnace for steel copper scrap metal

1. What is induction melting?

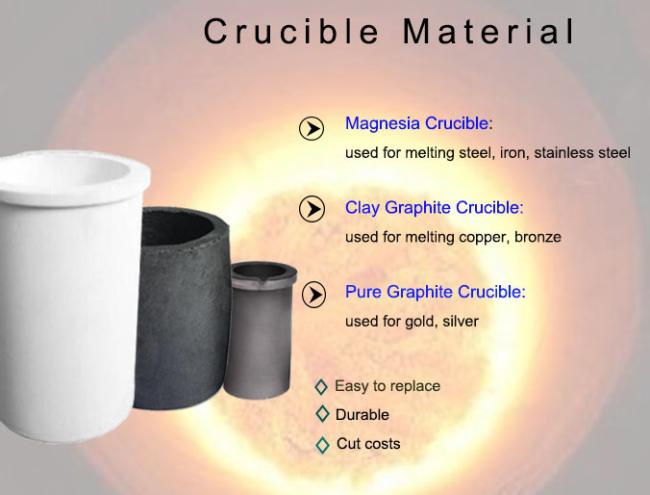

Induction melting is a process where metal is melted into liquid form in an induction furnace’s crucible. The molten metal is then poured from the crucible, usually into a cast. Medium frequency induction melting furnace is an induction heating machine. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

2. IGBT Induction Melting Furnace Application:

It mainly refers to heat metal to high temperature to convert the metal into liquid, it is suitable for iron, steel, copper, aluminum, zinc etc. precious metal melting and gold, silver, stainless steel etc metal melting.

3. Main technical parameters of LSZ series induction melting furnace:

4. Induction Melting Furnace Working Principle:

The working principle is that put the metal cylinder into the induction coil with alternating intermediate frequency current, the metal cylinder is not connected with induction coil directly, the temperature of energized coil itself is very low,but the surface of cylinder is heated to redness even melting,and the speed of redness and melting is achieved by adjusting the frequency and current strength.

5.  What are the benefits of induction melting furnace?
Induction melting is extremely fast, clean and uniform. When correctly performed, induction melting is so clean that it is possible to skip the purification stage necessary with other methods. The uniform heat induced in the metal also contributes to a high-quality end result. They not only make workplaces safer, they increase productivity by making the melting process faster and more comfortable.

6.The composition of Induction melting furnace:

power supply cabinet,compensation capacitor,furnace body and water-cooled cable and reducer.

Furnace body includes furnace shell,induction coil,furnace lining,titling furnace reducer box.

Induction melting furnace adopts series resonance,that is voltage-type resonance frequency tracking,so the efficiency and power factor are higher.

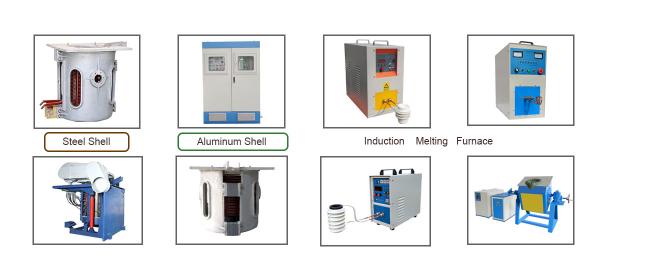

Induction melting furnace types include single-axis tiltpour, dual-axis tilt-pour, moving coil, rollover and laboratory.

7. Induction melting furnace equipment feature:

(1) small volume, light weight, high efficiency, energy-saving,electricity-saving;

(2) low temperature around furnace,less dust and smoke,good working environment;

(3) easy operation process,reliable melting operation

(4) uniform heating temperature,less burning loss,uniform metal composition, good casting quality;

(5) fast heat up temperature,easy control furnace temperature, good application effect.
