500KVA 0.5T Induction Bronze Melting Furnace 1600 Degree

Industrial high efficiency induction melting furnace for melting brass scrap

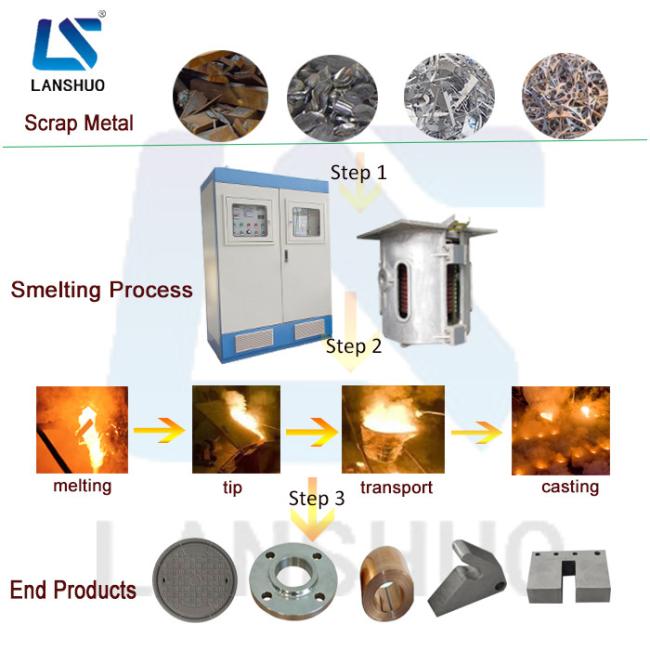

1. Brief Introduction of Medium Frequency Induction Melting Furnace:
The smelting furnace shall meet the following basic requirements as far as possible:
(1)The melting rate should be fast.
(2) The ratio of the surface area of the molten pool to the depth of the molten pool should be as small as possible.
(3) The metal temperature in the molten pool should be uniform;
(4)The heat efficiency of the furnace should be high.
(5)The process is easy to operate, and all processes of charging and smelting should be operated by mechanized and automated methods as far as possible.
(6)The chemical stability and various properties of the furnace masonry can ensure the quality of the melt.
2. Technical Parameter of Large Induction Melting Furnace:

3. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

4. Part of the melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:

Main Power Cabinet	Furnace Shell	Reducer	Water Cooled Cable	Crucible Mould	Induction Coil

5. The characteristics of the smelting furnace are as follows:
(1) Simple operation process and reliable smelting operation
(2) Uniform metal composition and good material control
(3) Small size, light weight, high efficiency and low power consumption of equipment
(4) Low temperature, less smoke and dust around the furnace and good working environment
(5) Pulse transformer is encapsulated with glue, completely isolated from the outside, with high voltage withstanding and low fault.
(6) Large control cabinet structure, good ventilation and heat dissipation effect in the control cabinet.
(7) Fast melting temperature rise, easy furnace temperature control and high production efficiency
(8) Furnace utilization ratio is high and variety replacement is convenient.
(9) The furnace body can be dumped electronically, which is easy to come out and is especially suitable for casting.
(10) The control cabinet is controlled by full digital circuit with low failure rate and convenient adjustment.
(11) The plug-ins on the control board are made of gold-plated parts, which have strong contact and long service life.
(12) The connector of the control board is plug-in, so it is very convenient to replace the control board.
(13) With over-current, over-voltage, water shortage protection, with double closed-loop closure and interception.
(14) All power devices have more than twice the desire to ensure the long-term stability of the equipment.
