Electric Rubber Hot Feed Extruder 7.5kw Motor Power ISO / CE Certification
Rubber Tubes Exturder Machine, Rubber Hot Feed Extruder, Rubber Strips Extruder, Rubber Porfile Extruder
Hot feed rubber extruder machine can be used for the shaping extrusion of various kinds of rubber products, rubber products, rubber wrap up for the out layer of the wire and electric cable and to do the rubber filter extrusion as well.
Hot feeding rubber extruder machine mainly consists of the screw, die head, machine body, heating and cooling system, electrical system and reducing gear boxes. Below is the main product parameters:
|
Item |
Screw Diameter (mm) |
Speed Ratio |
Maximum Screw Speed (r/min) |
Output (kg/h) |
Overall Dimension (mm) |
Weight (kg) |
|
XJ-60 |
60 |
4.5:1 |
75 |
72 |
1500x604x1053 |
880 |
|
XJ-65 |
65 |
4.5:1 |
75 |
85 |
1594x604x1053 |
1000 |
|
XJ-85 |
85 |
4.8:1 |
65 |
190 |
2065x760x1164 |
1500 |
|
XJ-90 |
90 |
4.8:1 |
65 |
280 |
2100x760x1164 |
2400 |
|
XJ-115 |
115 |
4.8:1 |
60 |
420 |
2770x860x1344 |
3100 |
|
XJ-120 |
120 |
4.8:1 |
60 |
520 |
2800x860x1344 |
3600 |
|
XJ-150 |
150 |
4.6:1 |
55 |
1100 |
3411x900x1450 |
6100 |
|
XJ-200 |
200 |
4.35:1 |
45 |
2500 |
4549x1140x1750 |
7200 |
|
XJ-250 |
250 |
4.5:1 |
45 |
4200 |
4950x1150x1800 |
8200 |

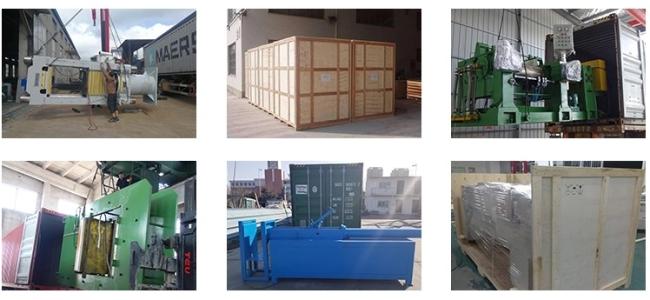

Machine delivery:
