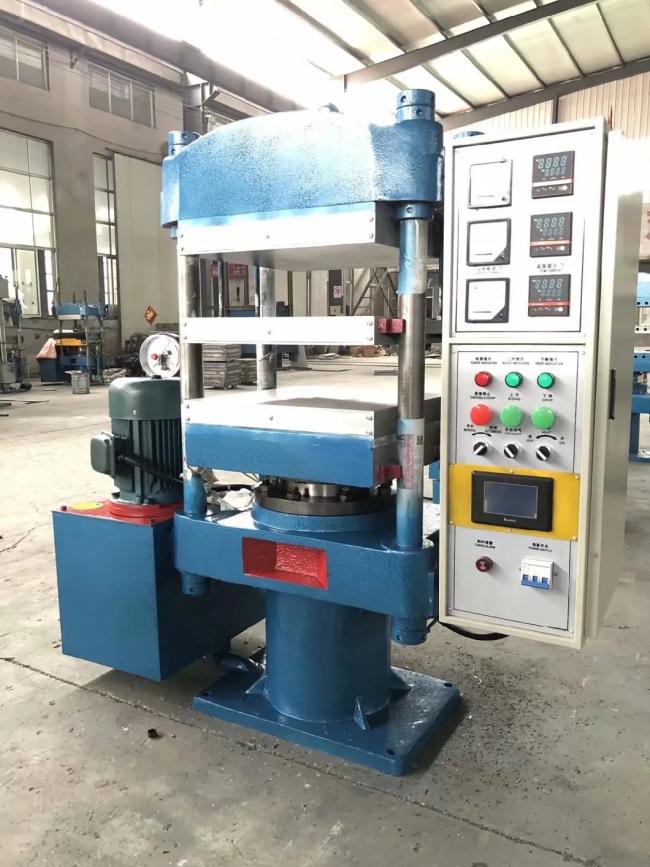

Double Layer Rubber Hydraulic Molding Machine With Electrical Heating Plates
100T pressure PLC control Double Layer Rubber Hydraulic Molding Machine with Electrical Heating Plates
Brief introduction:
The Rubber hydraulic molding press machine is mainly used for molding & vulcanizing rubber products, like rubber seal, o-ring, rubber gasket, special black rubber products, conductive products, keyboards, pads, melamine, auto parts and so on.
This rubber molding press machine is controlled by PLC, will provide enough pressure and stable temperature for vulcanizing rubber products. It can be Frame structure or 4-column structure. Also the molding sliding sytem and mold auto open system can be equipped as customer's requirement.
Technical specifications:
| Parameter | XLB350×350×2 | XLB400×400×2 | XLB600×600×2 | XLB750×850×2 |
| Total Pressure (MN) | 0.25 | 0.5 | 1 | 1.6 |
| Platen size (mm) | 350*350 | 400*400 | 600*600 | 750*850 |
| Plate Distance (mm) | 125 | 125 | 125 | 200 |
| Working Layer NO. | 2 | 2 | 2 | 2 |
| Unit Area Pressure(Mpa) | 2.04 | 3.13 | 2.77 | 2.51 |
| Plunger Stroke (mm) | 250 | 250 | 250 | 400 |
| Heating Mode | Electric | Electric/Steam | Electric/Steam | Electric/Steam |
| Motor Power (kw) | 2.2 | 2.2 | 2.2 | 3 |
| Overall dimension: (L×W×H) (mm) | 1400×480×1380 | 1600×500×1480 | 1880×720×1680 | 2250×1200×2200 |
Our packaging:
Our workshop:
