600T Pressure 1400*2000mm Platen Rubber Fender Hydraulic Molding Vulcanizing Machine
600T Pressure 1400*2000mm Platen Rubber Fender Hydraulic Molding Vulcanizing Machine

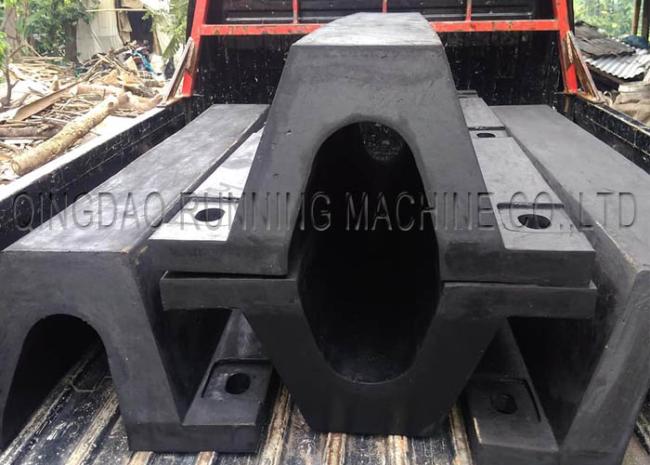

The Rubber compression molding press machine is mainly used for molding rubber product, like Rubber Fender, o-rings, rubber seal, rubber gaskets, medical applications, livehood applications, automobile parts, industrial parts, insulation mats and so on.
Product description of Rubber Fender Compression Molding Vulcanizing Machine:
1. The machine is frame structure with below pressing form (upwards). Under the hydraulic pressure, the piston plunger ascends to make hot plate close for getting pressure, while the piston plunger descends (namely hot plate turning on) by deadweight of hot plate, platform and piston plunger to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
2. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
Specifications of Rubber Fender Compression Molding Vulcanizing Machine:
|
XLB750×850 ×2/4 |
XLB-Q900 ×900×2 |
XLB-D1200 ×1200×2 |
XLB-D1300 ×2000×1 |
XLB-Q1200 ×2500×1 |
XLB-Q1500 ×2000×1 |
XLB-Q2000 ×3000×1 |
|
| Total pressure (MN) | 1.60 | 2.00 | 3.15 | 5.60 | 7.50 | 10.00 | 18.00 |
| Daylight (mm) | 200 | 300 | 200 | 400 | 400 | 400 | 400 |
| Platen Layers | 2-4 | 2 | 2 | 1 | 1 | 1 | 1 |
| Unit area pressure of hot plate(Mpa) | 2.51 | 2.47 | 2.19 | 2.15 | 2.5 | 3.33 | 3 |
| Piston stroke (mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Heating mode | Electricity/ Stream |
Stream | 22 | 21.5 | 25 | 33.5 | 30 |
| Main motor power (KW) | 3 | 5.5 | 3 | 8 | 9.5 | 11 | 26 |
| Size: (L × W × H) (mm) |
2250×1200× 2200 |
1400×900 ×2400 (Mainframe) |
1685×1320× 2450 |
2000×1860× 2500 |
2560×1700× 2780 |
2810×1550× 3325 |
2900×3200× 2860 |

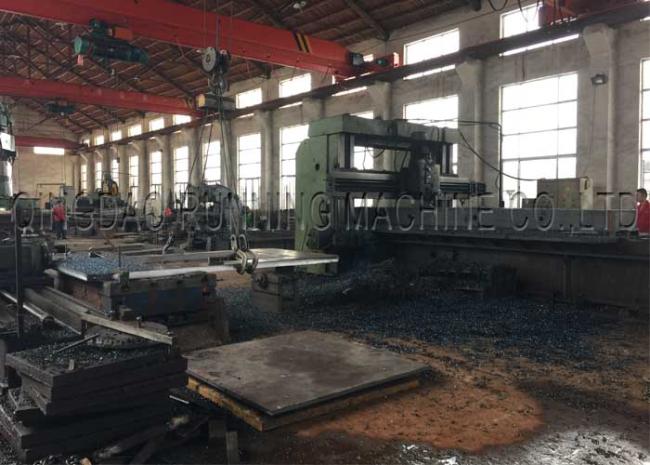

Our workshop:
Machine packing and delivery:
