600T Clamping Force 57.6kw Electric Heating Rubber Vulcanizing Press Machine
600T Clamping Force 57.6kw Electric Heating Rubber Vulcanizing Press Machine

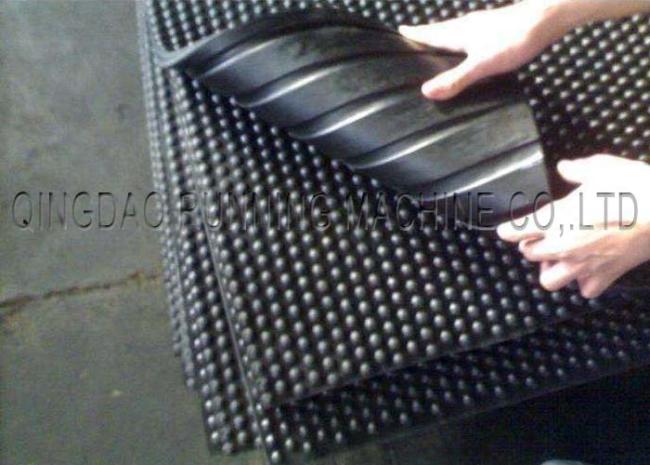

This kind rubber hydraulic vulcanizing machine is mainly used for vulcanizing & molding rubber products, like rubber mats, rubber sheets, shock-reducing rubber, condenser seals, rubber fender etc.
Machine introduction:
1. This rubber hydraulic vulcanizing machine is a frame type machine, adopt different thickness Q235 steel plate as frame according to its pressure (clamping force).
2. The hydraulic cylinder is made of nodular cast iron which has good ability of pressure bearing. The plunger is made of chilled cast iron, with high strengh and good wear-resistance performance.
3. Excellent hydraulic & structure design.
Machine specification:
| Description |
Hydraulic vulcanizing machine |
| Quantity of heating plates | two pcs, bottom plate is moving upward and top plate is motionless. |
| Quantity of working layer | one layer |
| The sizes of plates | 1500X1500mm |
| The Heating of plates | electric |
| The max. temperature | 250°C and 0-250°C is adjusted. |
| Parallelism and planeness | ≤0,09 mm |
| Roughness of a working surface of plates | Ra≤1.6a (2.5 μm) |
| Regulation of temperature with accuracy | ±5°C |
| The maximal effort of compression of plates. | 600 tons, 26.67kg/cm2 |
| The effort press should be adjustable | from 10 up to 600 tons. |
| Course of the basic plunger | 250mm |
| Gleam between plates | 250mm |
| PCL automatic control, OMRON |
Automatic clamping and opening, pressure control, exhaust and vulcanizing time. |
| Power of heating plates. | 28.8kw/pc * 2pcs = 57.6 |
| Power of main motor | 7.5+5.5=13.0 |
| Dimension | L2800*W1600*H2850 mm |
| Weight | about 17000 kgs |
Our packing:
We can design and make standard & non-standard rubber hydraulic vulcanizing machine according to your production requirement.
Welcome you to visit our factory!
