ZLJ-1600*1000mm Rubber Conveyor Belt Vulcanizing Joint Machine, Vulcanizing Tool for Fractured Conveyor
ZLJ-1600*1000mm Rubber Conveyor Belt Vulcanizing Joint Machine, Vulcanizing Tool for Fractured Conveyor
The conveyor belt vulcanizing joint machine is mainly used for joint the fractured / broken conveyor belt, Or it can be used to joint short conveyor belt into longer one.
Conveyor tape vulcanized joint (repair) machine series of products using modular, electric heating, hot plate temperature difference is small, the new pressure water bag pressure uniform, lightweight, reliable quality, the use of new difital control box, long life, good performance, light weight.
Applicable to canvas, nylon, steel cord, PVC and other tape vulcanized joints (repair).
Water-cooled connector (repair) curing machine, in order to save the curing time of vulcanization, and improved a new type of tape curing machine, the device as long as the use of the site with ordinary water, you can complete the curing, the hot plate water cooling, from the curing temperature to 60℃ only 20 minutes, is a new, ideal conveyor belt cement (repair) equipment.

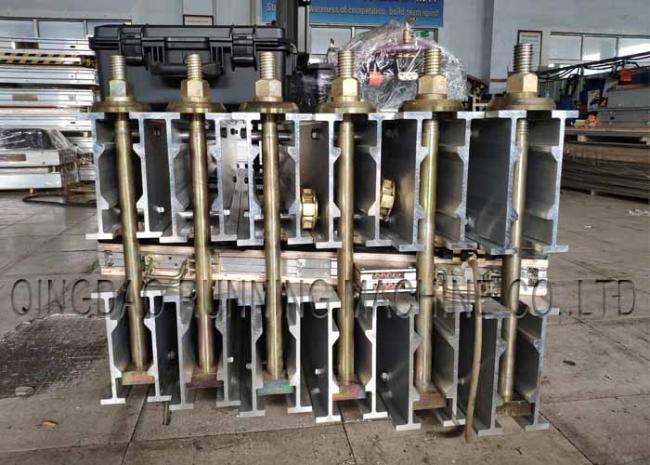

Machine components:
| Name | Amount |
| Host machine | 1 set |
| Ratchet wrench | 2 piece |
| steel pad | 1 set |
| Clamping device | 1 set |
| Electric control box | 1 set |
| Power cable | 1 root |
| Control cable | 2 root |
| Thermal resistance | 2 pieces |
| QL electric water pump | 1 set |
| SD Hand pressure pump (Optional) | 1 set |
| Pressure pipe | 2 root |
| Water cooling system (Optional) | 1 set |
Machine specification:
| Model |
Belt Width (mm) |
Power(kw) |
Dimensions (L*W*H mm) |
Weight(kg) | Single Piece Weight(kg) |
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 | |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 | |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 | |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 | |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 | |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 | |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 | |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 | |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |

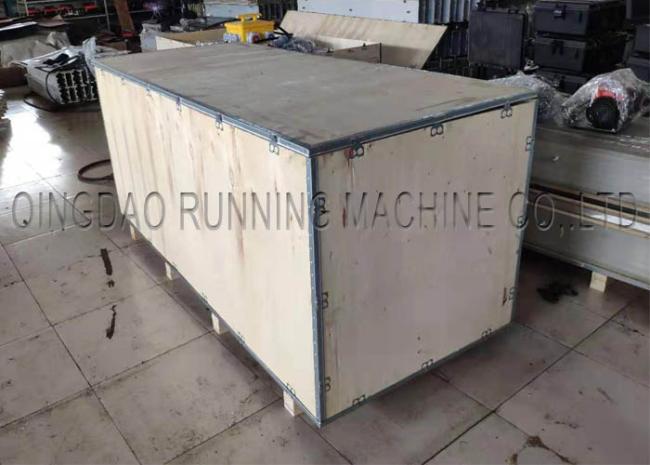

Machine package:
