Integrated 75kw 3.0Mpa Rubber Steam Tire Vulcanizing Tank
Price:
Negotiation
MOQ:
1 SET
Delivery Time:
45days
Brand:
RUNNING
Product Description

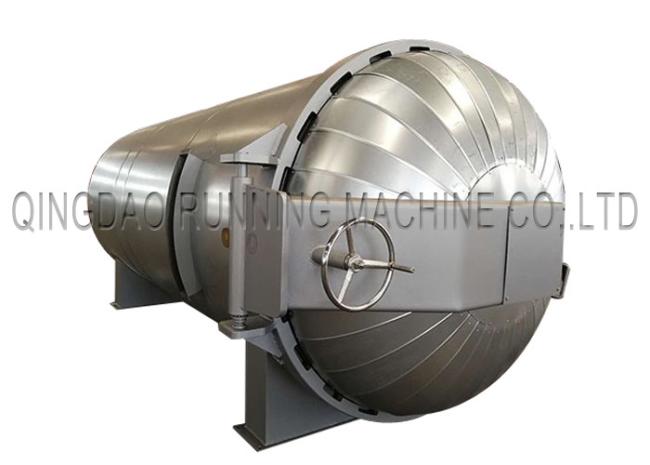

Steam Tire Manufacturing Vulcanizer Vulcanizing Tank
Rubber Vulcanizing Autoclave
1: Our company's products have a high degree of automation, temperature, pressure and time are automatically controlled, the performance is stable and reliable, and the use is convenient and fast.
2: The design pressure is 0.6-3.0Mpa, the design temperature is 150-220 ° C, the diameter is 600-5000mm, and the length is between 1000-60000mm. It is designed and customized for customers according to the product technical requirements .
3: After setting the work program, the control system automatically performs heating, heat preservation, vulcanization and other work. After the vulcanization is completed, an audible and visual alarm sounds and the work stops automatically.
The features
Rubber hose vulcanizing tank is a pressure vessel with speed open door, the autoclave openings sealed with inflatable silicone ring or internal pressure self-tight rubber pad. Mechanical or manual gearing is used to lock and open the lid, reasonable structure, convenient operation, good sealing performance, the temperature in the tank is uniform,furthermore, complete safety accessories (equipped with safety interlock device).
Accessory equipment
1: Activity integration
After the lid of the horizontal vulcanization tank is opened, a segment of movable rails is needed to connect the ground rail to the inner rail, so as to realize the mechanization of the vulcanization trolley for loading and unloading the products into and out of the vulcanization tank. There are two main types: one is to have a tank lid pull a section of track mounted on a moving trolley through a connecting rod to make it reach the track. The other is a hinged joint.
2: Towing trolley
The traction trolley is a dedicated rail trolley for vulcanizing tanks. It is used to push the vulcanizing trolley loaded with semi-finished products into the vulcanizing tank. After vulcanization is completed, the vulcanizing trolley is pulled out of the vulcanizing tank. Traction trolleys are used more in rubber shoes and hose factories.
Technical parameters:
| Item | 800 | 1200 | 1500 |
| Inner diameter(mm) | 800 | 1200 | 1500 |
| Canister length(mm) | 2200 | 3000 | 3000 |
| Number of lid sawtooth | 12 | 12 | 14 |
| thickness of lid (mm) | 10 | 10 | 10 |
| Thickness of the tank body(mm) | 10 | 10 | 10 |
| Working pressure(MPa) | 0.8 | 0.8 | 0.8 |
| Dimensions(mm) | 2766*1445 | 4010*1575 | 3960*2150 |
| (length*width*height) | *1170 | *1670 | *2050 |
| Weight(Kg) | 1580 | 2017 | 2950 |
Application
1. Mainly used for rubber products, hoses, rubber roller and other vulcanization
2. Rubber vulcanizing autoclave is widely cured with rubber products for mechanical properties such as: new tire curing, tire refurbishment, hose, roller, cable, pipe vulcanization
3. Capsules, rubber sheet, rubber gloves, rubber shoes, tape, lined rubber, rubber cloth, rubber and other products vulcanization.
4. Rubber vulcanizing autoclave is also widely used for wood degreasing, hydrolysis, wood dipping, wood shaping,
oxidizing,autoclaving, wood cooking, wood impregnation and wood drying, etc.
