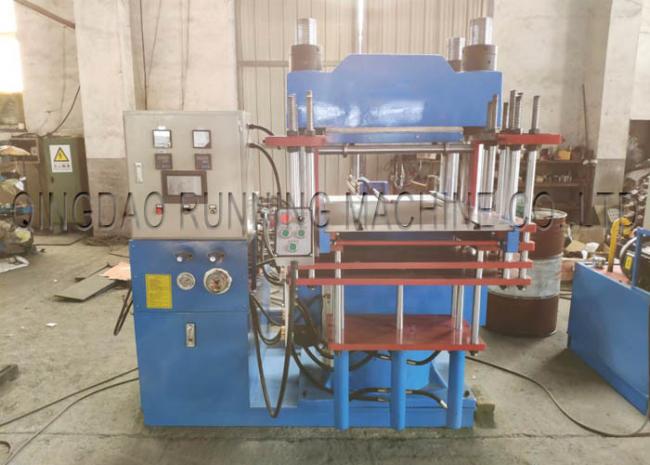

Platen Rubber Seals Hydraulic Vulcanizing Press Machine 250T 642*600mm
250T Pressure Single Working Station 642*600mm Platen Rubber Seals Hydraulic Vulcanizing Press Machine
SUITABLE FOR:
Nature Rubber
Synthetic Rubber
Like: NBR/ EPDM /CR /SBR/ FBR/ IR/ SOLID SILICON RUBBER
Advantages:
1. This kind Rubber hydraulic molding press machine is suitable for multi layers molds.
2. Special designed hydraulic system, with advantages of stable running & high efficiency.
3. High -precision structure steel design, easy but speedy, convenient to fit various molds. Adjusting, repairing or maintaining are very easy and accurate.
4. Slow speed of alignment adjusting is provided to make the molds calibration more safe and more accurate to suit various molding conditions.
Specification of Rubber hydraulic vulcanizing press machine:
| Type | 100T | 150T | 200T | 250T | 300T | |
| Clamping force(ton) | 100 | 150 | 200 | 250 | 300 | |
| Stroke(mm) | 350 | 300 | 250 | 250 | 250 | |
| Heating plate size(mm) | 450x450 | 460x460 | 546x560 | 642x600 | 700x700 | |
| Diameter of cylinder(mm) | 250 | 300 | 350 | 400 | 450 | |
| Horse power(hp) | 7.5x2 | 10x2 | 10x2 | 10x2 | 10x2 | |
| Type of mold opening | 2RT3RT/4RT | |||||
| Heating power(kw) | 18 | 18 | 27 | 38 | 38 | |
| Total power(kw) | 29 | 29 | 38 | 49 | 53 | |
| Gross weight(ton) | 5.1 | 5.5 | 7 | 8.5 | 10.5 | |
| Machine Size(m) | 2.8x2x2.1 | 2.8x2.2x2 | 3x2.4x2 | 3.3x2.5x2.2 | 3.4x2.6x2.2 | |
Machine details:
Electric control cabinet of rubber hydraulic vulcanizing press machine:
Equipped 3RT mold automatic opening system, which is suitable for 3-layers mold,
More machine details please contact by mike@running-machinery.com
Other related machines you may be interested in:
Vacuum rubber molding machine:
Rubber injection molding machine:
Rubber kneader
Rubber mixing mill
