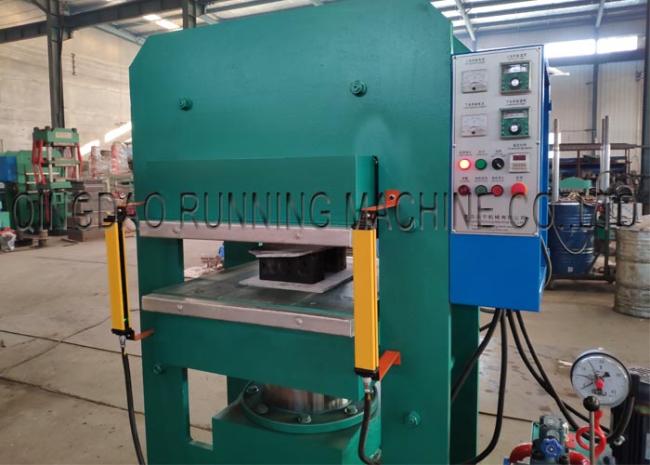

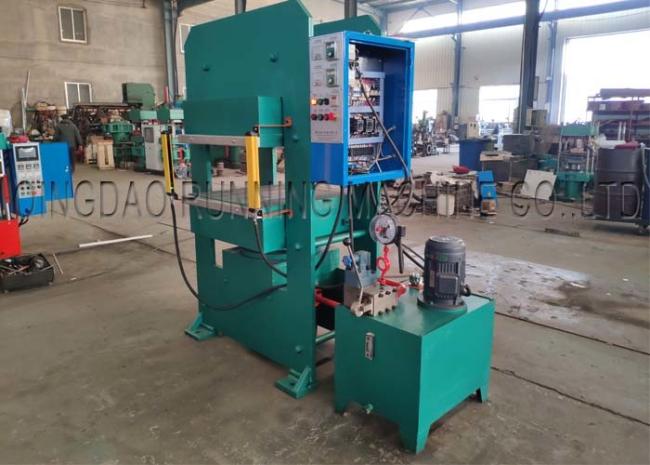

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T
160T Pressure 750 * 850mm Platen Rubber Oil Seal Hydraylic Molding Vulcanizing Press Machine
Vulcanizing progress is a chemical process in which the rubber is heated with sulphur, accelerator and activator at 140–160°C. The process involves the formation of cross-links between long rubber molecules so as to achieve improved elasticity, resilience, tensile strength, viscosity, hardness and weather resistance.

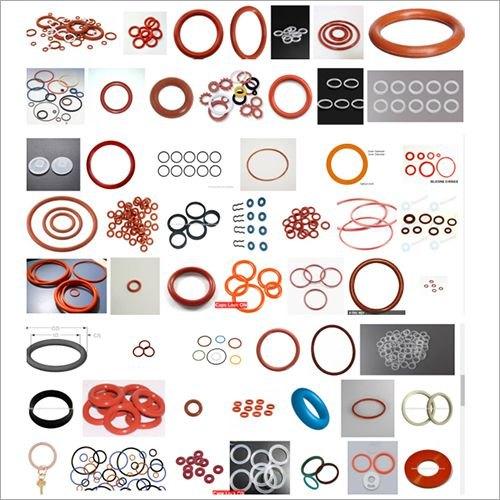

What can be made by this Rubber Vulcanizing Press Machine?
Specification of Rubber Vulcanizing Machine:
| Model | XLB-D750*850*1/1.60MN |
| Clamping force | 160T |
| Platen size | 750*850mm |
| Stroke | 300mm |
| Platen daylight | 300mm |
| Heating | Electrical, 17.1kw |
| Driving motor | 3kw |
| Control model | Relay automatic control with safety grating |

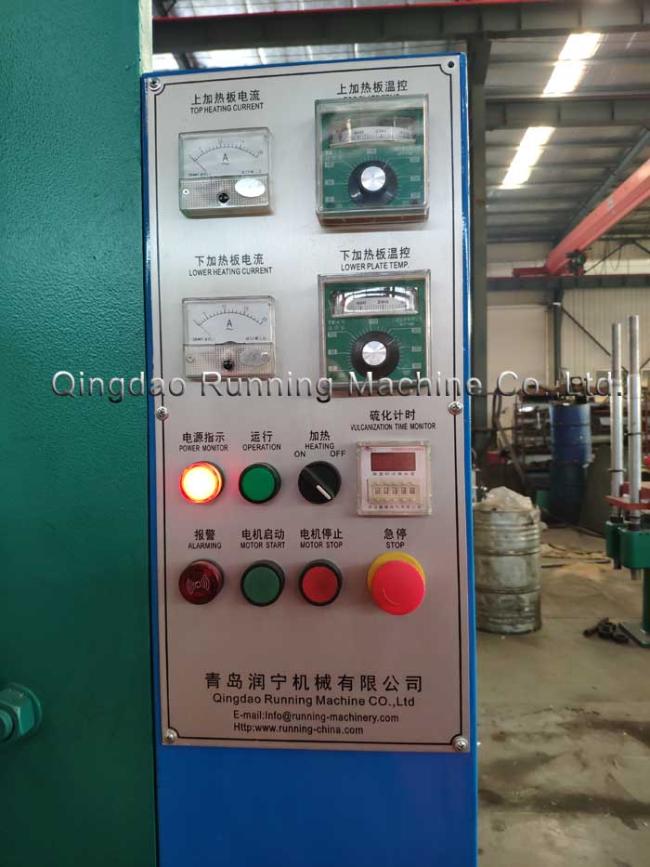

Control panel of Rubber Vulcanizing Press Machine:
To keep the safe of operator, there is safety grating equipped on the rubber vulcanizing press machine.
Other related rubber machines:
Rubber Kneader Machine

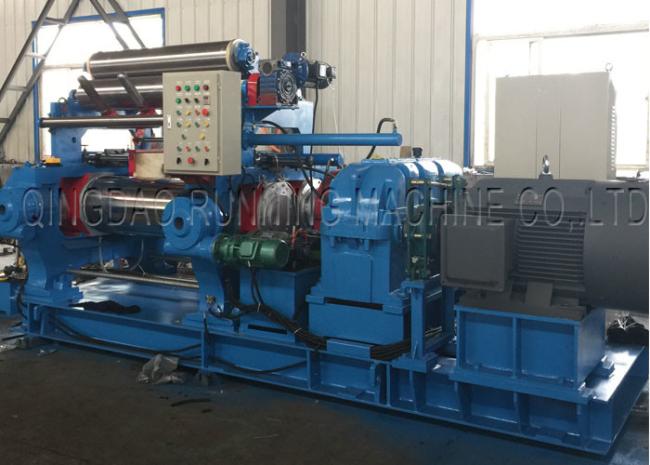

Rubber Mixing Mill

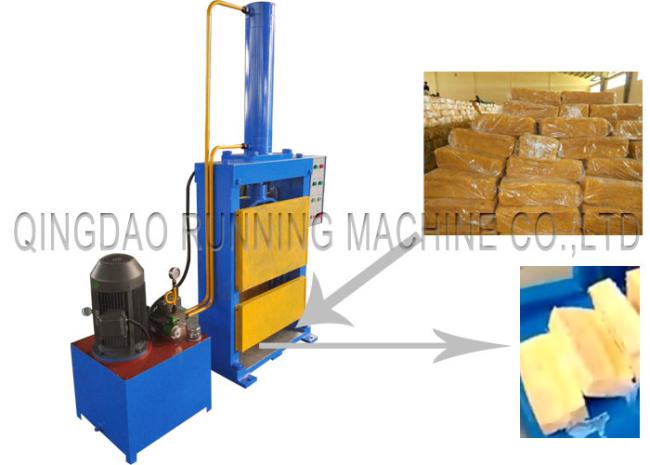

Rubber Bale Cutter

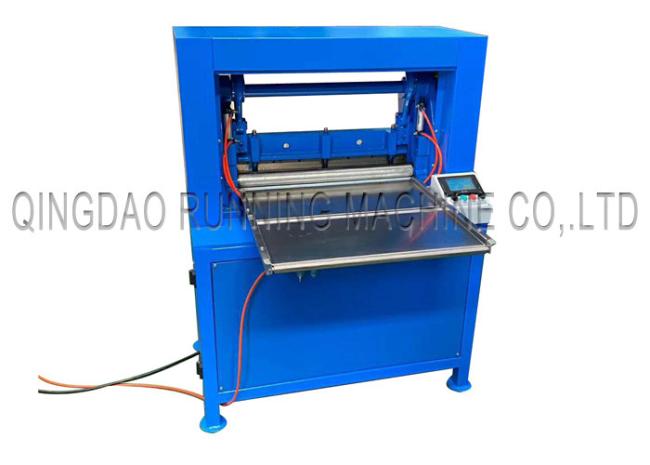

Rubber Strip Cutting Machine
We also make lots of other rubber machines, like Rubber extruder, Rubber compound cooling line, Rubber inejction molding machine etc.
For more details please feel free to contact us!
