Tension Spring Type Rubber Sheet / Tire Tread / Inner Tube Strips Transport Trolley

Tension Spring Type Rubber Sheet / Tire Tread / Inner Tube Strips Transport Trolley is usually used in production lines of tire, inner tube or rubber sheet. Except the tension spring type, there is torsion spring type for your choice.

Specification:

L: 2000mm, space between tubes: 60mm, 16-18 layers

W: 1000mm, space between tyres: 120mm, 8-12 layers

H: 1500mm

The specification of the trolley or shutter car can be customized.

Application:

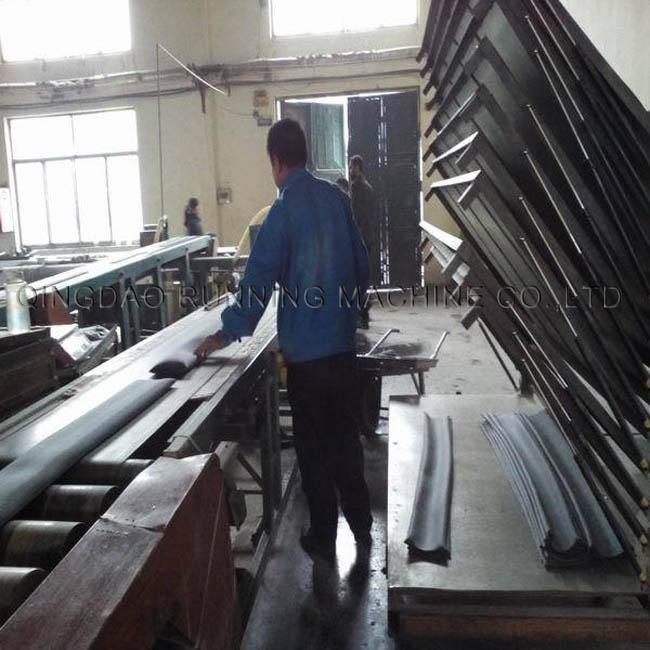

This machine is mainly used to put and transport rubber sheets after milling with mixing mills. It is a necessary equipment in the process of rubber products production.

Material:

weld the left and right mounting plates with steel angle and channel steel. There are two kinds of return pulleys: directional wheel and omni-directional wheel. They are high-intensive nylon wheels. The surface of plates uses 0.8mm galvanized sheets.

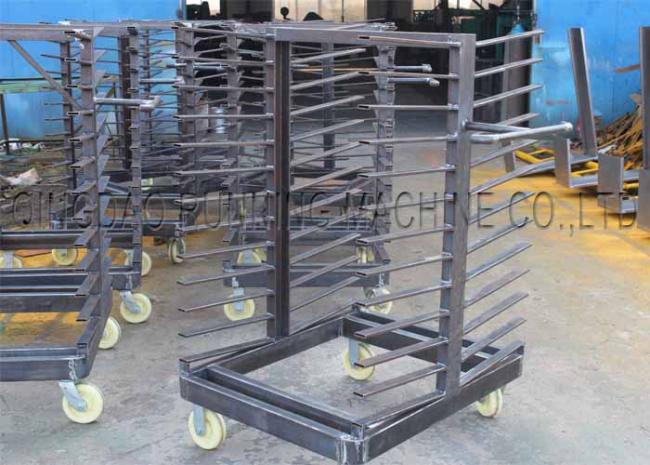

Half-finished Tension Spring Type Rubber Sheet / Tire Tread / Inner Tube Strips Transport Trolley:

Features:

1. The trolley is characterized by large storage capacity, convenient and flexible operation, stable property and automatic overturn and reset. The surface of plates is featured by maximum operating space, small covering area and simple structure.

2. The faceplate which is used to put rubber sheets is made of stainless steel. It is smooth, rustless, non-stick and good ventilative effect.

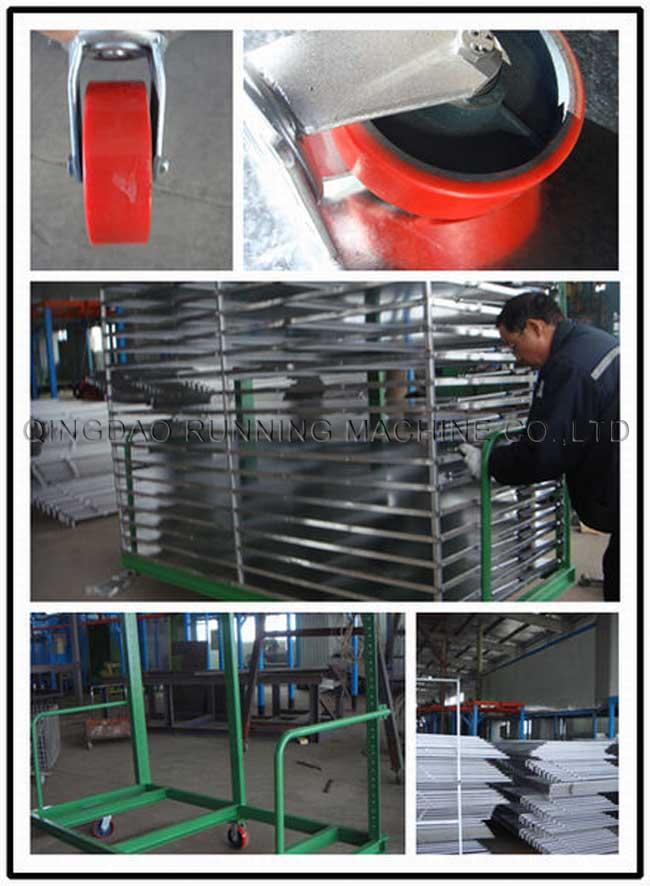

3. Wheels use directional wheel and omni-directional wheel. It’s easy and convenient to transport.

Other related machines:

Tire Curing Machine:

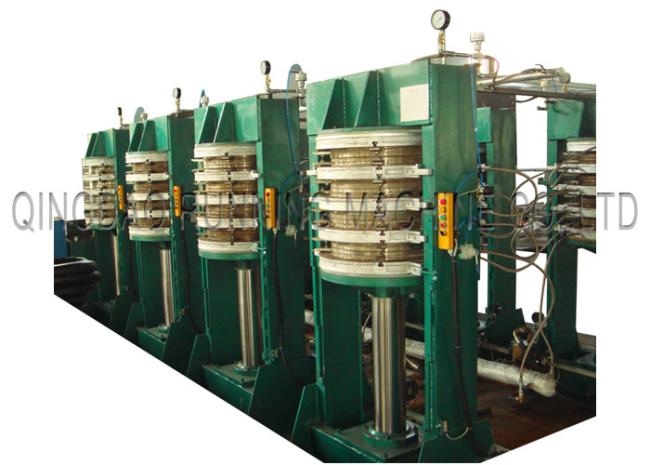

Inner Tube Curing Machine:

Rubber Extruder:

Rubber Mixing Mill:

Please contact us for more details!
