Rubber Compound Sheet Batch Off Cooling Machine Auto Pick Up Air Drying
Rubber Compound Sheet Auto Pick-up Water Cooling Air Drying type Batch Off Cooler Machine

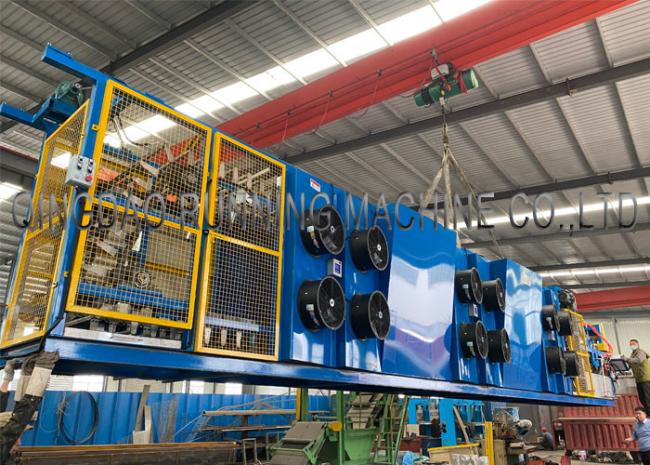

Rubber batch-off machine is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber film that comes from the open mills or twin screw extruder. It is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking, of course these functions are optional as your on-site production requirement.
Main product parameters
| Model | System of units | XPG-600 | XPG-800 | XPG-900 |
| Max rubber sheet width | mm | 600 | 800 | 900 |
| The thickness of the rubber sheet | mm | 4-10 | 4-10 | 4-10 |
| Rubber sheeting temperature over room temperature after cooling | °C | 10 | 10 | 10 |
| Conveyor linnear speed | m/min | 3-24 | 3-25 | 4-40 |
| Swing sheet length | m | 1-1.3 | 1-1.3 | 1-1.3 |
| Hanging height of the sheeting hanging bar | mm | 1000-1500 | 1000-1500 | 1400 |
| Number of cooling fans | set | 12 | 20-32 | 32-44 |
| Total power | kw | 16 | 25-34 | 34-50 |
| Dimension(L x Wx H) | mm | 10949x1870x3217x | 16800x4700x3520 | 35000x3500x5630 |
| Gross weight | T | 11 | 22 | 34 |
Description of spare part:

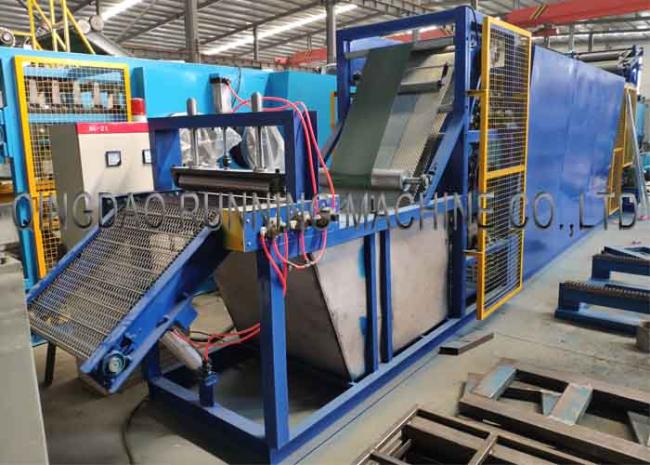

1. Take in device:
It is used to take in the rubber file from extruding machine or rubber mixing mill machine. Take in device adopts conveyor, the transmission system adopts frequency governor to control, so taking in speed can be adjsuted.
2. Soak device:
Equipped with triplet, manual rotary valve and pressure cylinder, adjust pressed roll according to cylinder control through the manual rotary valve, in order to make discontinuous film compressed together and the film continuous a slice.
3. Leaching plasma device:
Function: Take over the film conveying equipment undertakes immersing, and carry on isolation agent. Equipped with cooling water pipe, through the cooling water source, continuous cooling liquid isolation, in order to control the temperature.
4. Take up device:
This device through the conveyor belt with isolation liquid film will be conveyed to the air cooling section gripping.

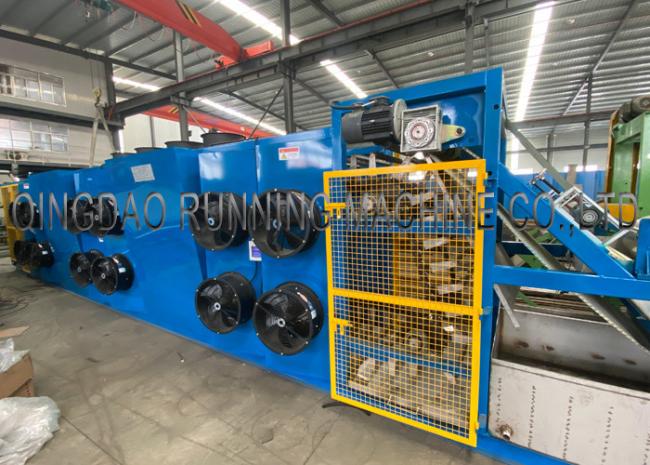

5. Wind cooling device:
Constitute: It is made of frame, cooling fans, hook rail and hang lever conveyor. Cooling fan selection adopts 20 axial fan, satisfy the requirements of film cooling; Hang lever are installed on the taper pin, film in hang lever.
6. Air control part:
Take-in control, each cylinder pressure and in the action, control system adopts reliable performance with high quality products.
7. Electrical control system:
(1) All the wires controlled by PLC, it easy for operation, reliable quality.
(2) The speed of production line can be through the inverter adjustment, make the film cooling line speed and host match.
(3) Fan control by the group control each motor are over-current protection circuit breaker, when a fault fan produced when the output signal of the fan, fault in all units and stop hair drier, just deal with a fault can be fan.
Welcome your inquiry of machine details!
