4×2 Drive Mode Used Tipper Trucks Dongfeng Brand Euro 3 Emission Standard
Dongfeng Light used Tipper Dump Truck with 4×2 Drive mode , Euro 3 Emission and CY Engine in 2014 Year could be used in kinds of constructions.
| SPECIFICATION | ||
| Model: | EQ3040GLT | EQ3040GLN |
| Engine | ||
| Model | CY4102-C3D | CY4102-C3F |
| Type | Diesel, Direct Injection,Turbo charged with Intercooler | Diesel, Direct Injection,N/B with water Intercooler |
| Max. Engine Output (HP or KW/rpm) | 80 KW(109 HP) | 66 KW(90 HP) |
| Max. Tourque (N.m/rpm): | 300 Nm @ 1400-1800 rpm | 230 Nm @ 1400-1800 rpm |
| Cylinder Displacement L/cc | 3856 ml | 3707ml |
| Emission: | Euro 3 | Euro 3 |
| Gear Box | MT / Forward 5 & Reverse 1 | MT / Forward 5 & Reverse 1 |
| Model | LG5S300 | LG5S300 |
| Suspension | Strengthen spring | Strengthen spring |
| Type | Spring leaf tablet: 10/10+8 | Spring leaf tablet: 10/10+8 |
| Brakes | Front&Rear drum,dual-circult service brakding system | Front&Rear drum,dual-circult service brakding system |
| Clutch | ||
| Type: | Single,dry,diaphragm spring clutch⊙330 | Single,dry,diaphragm spring clutch⊙330 |
| Overall Dimensions (LxWxH) mm: | 5500×2100×2460 | 5500×2100×2460 |
| Wheel Track (front/rear) mm: | 1506 / 1466 | 1506 / 1466 |
| Overhang (Front/Rear) mm: | 1090 / 1110 | 1090 / 1110 |
| Driving Type: | 4×2 | 4×2 |
| Wheel Base (mm): | 3300 | 3300 |
| Min ground clearence (mm): | 226 | 226 |
| Vehicle Weight | ||
| Curb weight (kg): | 2580 | 2580 |
| Pay Load Capacity (kg): | 4400 | 3500 |
| Gross vehicle weight (kg): | 6980 | 6080 |
| Tipper Body | ||
| Volume | 3700×2000×600 4.44 CUM | 3700×2000×600 4.44 CUM |
| Tipping Angle | 45~56° | 45~56° |
| Cabin: | 1+2 seats / 2 doors | 1+2 seats / 2 doors |
| Steering | ||
| Type: | power steering gear | power steering gear |
| Wheels & Tyres | ||
| Front: | Tire Number: 2, Tire Size: 7.00R16 | Tire Number: 2, Tire Size: 7.00R16 |
| Rear: | Tire Number: 4, Tire Size: 7.00R16 | Tire Number: 4, Tire Size: 7.00R16 |
| Performance | ||
| Max speed (km/h): | 95 | 95 |
| FOB $ | 11,990 | 11,530.00 |
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.

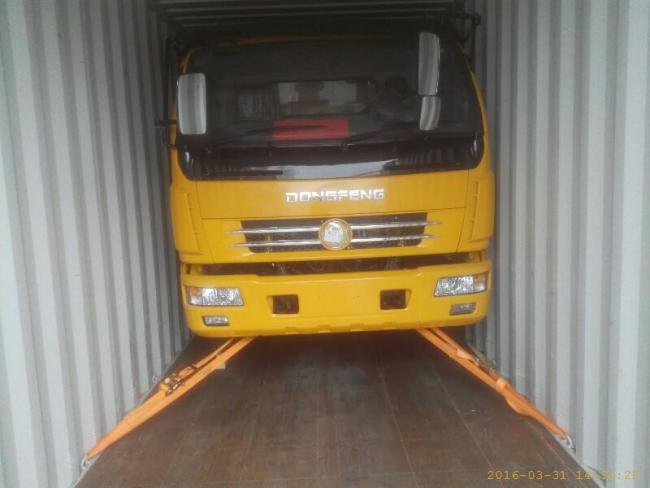

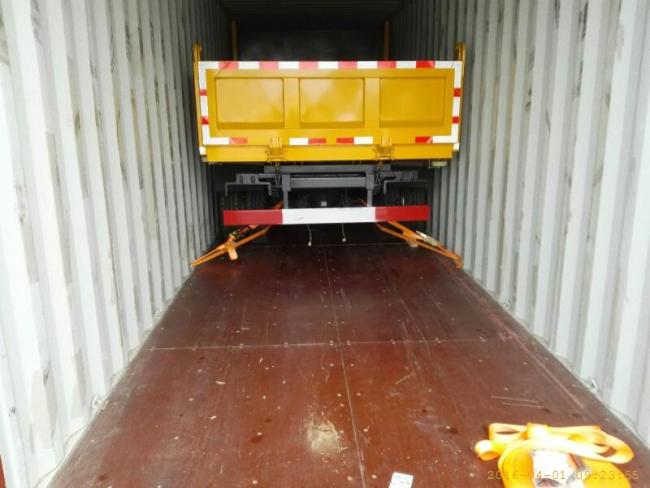

Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
