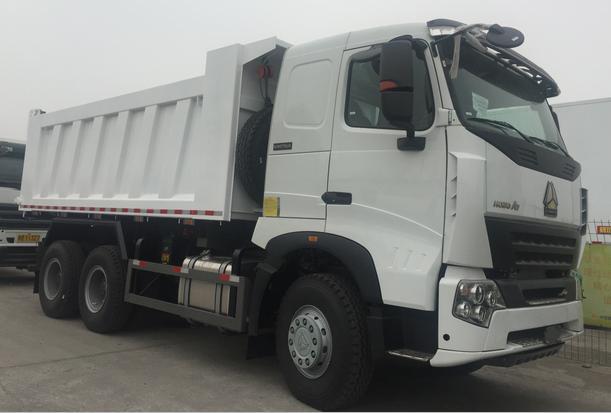

HOWO A7 380HP Used Dump Truck 6x4 Drive Mode EURO II Emission Standard
EURO II Emission and 6x4 Drive mode Used 380HP dumper Truck in 2014 year could be used in kinds of circumstances.
| Truck Model | ZZ3257N3847N1 | ||||
| Truck Brand | SINOTRUK—HOWO A7 | ||||
| Dimension(Lx W xH)(unloaded)(mm) | 8265*2496*3490 | ||||
| Driving Type | Left Hand Driving | ||||
| Cargo body size (L*W*H, mm) |
5800*2300*1500 bottom:8mm,side:6mm |
||||
| Lifting Type | Ventral side Lifting | ||||
| Approaching angle/Departure angle(°) | 20/26 | ||||
| Overhang(front/rear) (mm) | 1540/1650 | ||||
| Wheel base (mm) | 3825+1350 | ||||
| Curb weight(kg) | 12270 | ||||
| Persons in cab(persons) | 2 | ||||
| Gross vehicle weight(kg) | 25000 | ||||
| Max speed(km/h)(km/h) | 80 | ||||
|
Engine Model (Steyr technology, made in China) |
D10.38-40, water-cooled,four strokes,6 cylinders in line with water cooling, directly injection | ||||
| Fuel type | Diesel | ||||
| Horse Power, max(kw/rpm) | 380HP | ||||
| Emission | EURO IV | ||||
| Fuel tanker capacity (L) | 300 | ||||
| Transmission Model | HW19710 10 forwards and 2 reverse | ||||
| Steering Model | 8118 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type. | ||||
| Clutch | single disc, dry type, diaphragm spring ;φ430 | ||||
| Service brake | Dual circuit compressed air brake | ||||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | The engine exhaust brake (EVB) | ||||
| Front axle | HF9 Disc Steering with double T-cross section beam | ||||
| Rear axle | AC16 Casting axle housing, central double reduction with differential locks between axles and wheels | ||||
| Color | White, Red, Yellow. according to the customer | ||||
| Tyre |
12.00R20 NO.10+1 Pieces |
||||
| Electrical system | Battery | 2X12V/180Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | A7-W standard cabin, two seats and one bed with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
