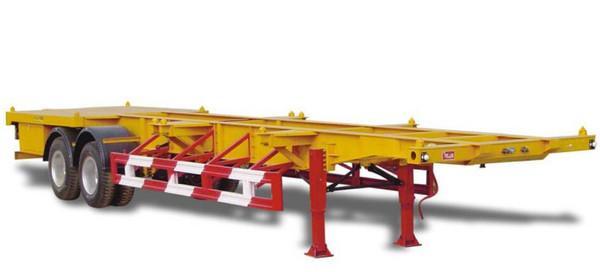

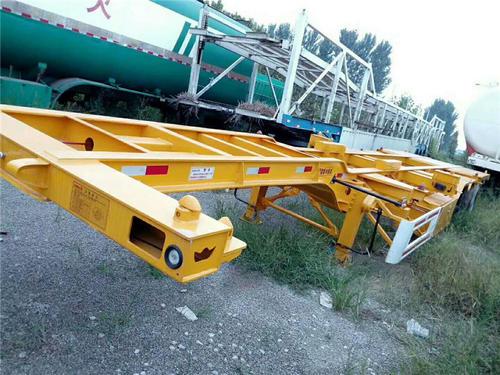

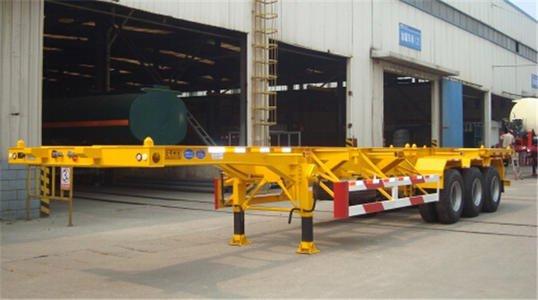

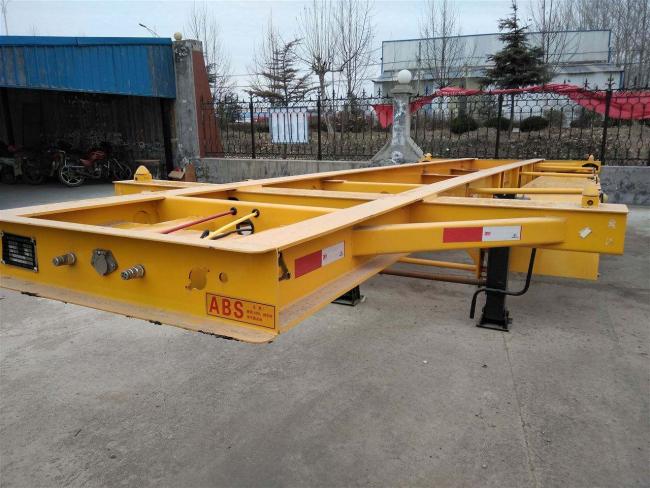

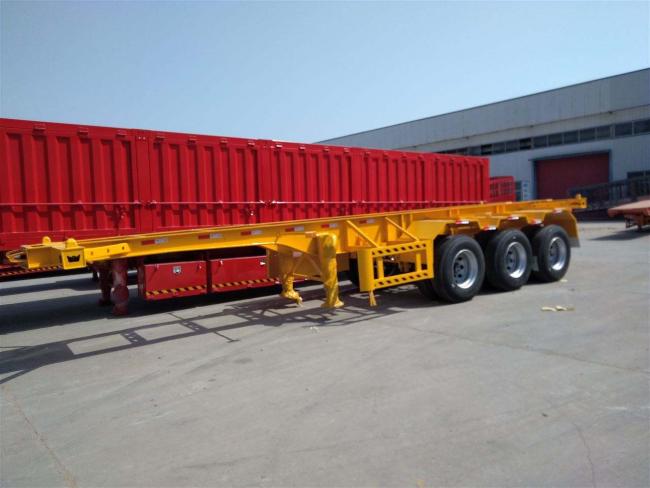

Steel Second Hand Semi Trailers Flatbed Gooseneck Skeleton Semi Trailer Transportation
Used 2 axle 3 Axles Flatbed Gooseneck Skeleton Container Skeleton Semi Trailer transportation
Product Parameters:
| Dimension and Weight | |
| Overall Dimension(mm) | 12500x2500x1650mm |
| Wheelbase | 7,500mm+1,310mm+1,310mm |
| Payload | 40,000kg |
| Tare weight | 6,500kg |
| G.V.W.R. | 46,500kg |
| Function | transport 1x20ft, 2x20ft, 1x40ft container |
| Running System | |
| Main beam | height of the beam is 500mm, upper plate is 14mm, down plat is 16mm, middle plate is 8mm. |
| Side beam | 16# |
| Axle | 3x13Ton ZY brand |
| Axle Number | Three |
| Tire | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
| Electrical System | Chinese standard 24V lighting system |
| Brake system | Dual line pneumatic brake, no ABS |
| Brake air chamber | 6 units T30/30 Double brake chambers |
| Emergency relay valve | Standard |
| Diamond plate | 4mm |
| Traction/King Pin | 2" and 3.5" removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing Gear | Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
| Accessories | |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Mud guard | Steel mud guard and front mudguard |
| Spare wheel carriers | 2 pcs |
| Bumper | Rear bumper with adjustable height |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core electric cable protected by PVC conduit on main frame | |
| Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed |
| Packing | Nude, Polish with wax before shipping |
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
