Waterproof LED Underground Lamp Underground Landscape Lights Small Volume
High Quality 316 Stainless Steel Aluminium Material Buried Color Changing RGB Led Underground Light With DMX

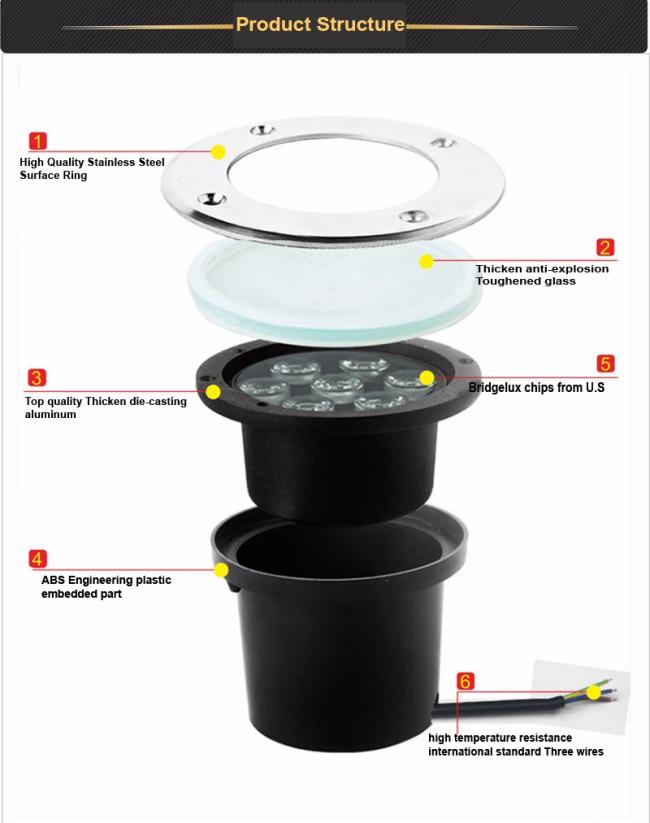

Stainless steel polishing panel shell, small volume, good heat dissipation, high quality waterproof joint, silicone sealing ring, toughened glass, the shell of aluminum alloy lamp body and the overall molding process (optional stainless steel), to ensure good heat dissipation. The mirror face uses 8mm tempered glass, and has strong compression ability. Waterproof grade IP67. Using super bright LED as the light source, a new type of buried decorative lamp with LED constant current driving mode is selected.

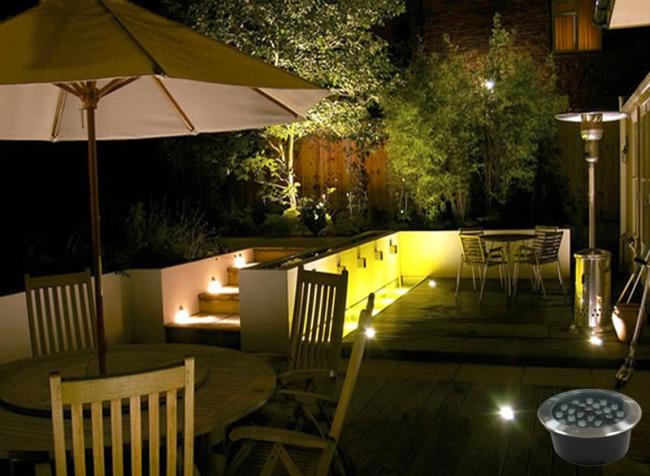

LED buried lamp is a new type of buried lamp decorated with super bright LED as the light source and driven by LED constant current drive. It is widely used in outdoor lighting such as square, outdoor park, and leisure place, as well as park greening, lawn, square, courtyard, flower bed, pedestrian street decoration, waterfalls, fountain and other places night lighting, to add brilliance to life.
Features
1. Patent design.
2. Customized solution for you.
3. High luminous efficacy, great heat dissipation.Up to 100lm/w.
4. Longtime maintain service, up to 2 years warranty.
5. RGB make you a colorful and morden city.
Application Park, garden, square, pathway, sidewalk, etc.
| General Information | Name | LED Underground Light | |
| Model No. | KSL-DM-B009 | ||
| Light source | High power | ||
| LED Light Source | Bridgelux, Epistar, and whatever you want | ||
| Chip | High power | ||
| Warranty | 2 years, 3 years and 5 years optional | ||
| Electrical Information | Power(W) | 6W | |
| Voltage | AC85-265V 50-60Hz, 12V/24V | ||
| Driver efficiency | >90% | ||
| Power factor | 0.95 | ||
| Optical Information | Luminous flux(lm) | More than 540 | |
| Luminous efficacy(lm/w) | 90-110lm/w | ||
| CRI | 80 | ||
| Color temperature | 2700K-7200K, Red, Green, Blue, RGB | ||
| LED quantity(PCS) | 6 | ||
| Beam angle | 5/15/25/30/45/60/90/120 Deg | ||
| Lifetime | 50000 hours | ||
| Mechanical Information | Housing material | Aluminum, stainless steel 304 316 | |
| Lens material | PC | ||
| Ambient temperature | -40℃~50℃ | ||
| Working temperature | <60° | ||
| Storage temperature | -40℃~50℃ | ||
| IP Rating | IP65 | ||
| Installation | Φ150*65mm | ||
| Packaging Information | Product size(CM) | 17.5*10*19.5 | |
| G.W. about(KG) | 1.2 | ||
| Assesories | Embedded parts, wire | ||
