5 Watt Led Underground Lamp In Ground Pathway Lights 2 Sides Beam Angle
IP65 Outdoor 2 Sides 3Sides Beam Angle Under Ground Light 3w 5w 7w 9w LED Inground Lamp

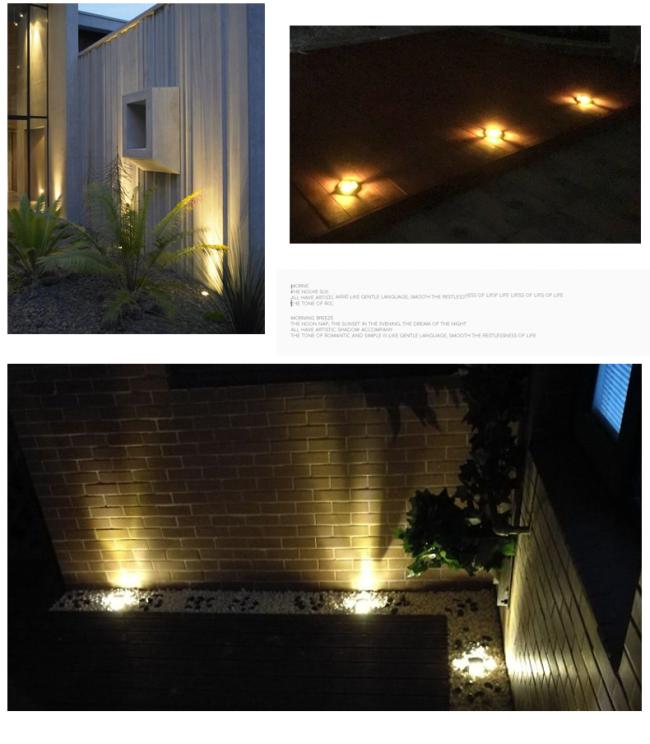

Generally, it is widely used in network stores, parking lots, green belts, park brigades, scenic spots, residential quarters, city sculptures, walking streets, building steps and other places, mainly buried in the ground, used for decoration or indication lighting, and for washing walls or trees, which should be used with considerable flexibility.
1, before the installation of LED buried lamp, the power must be cut off. This is the first step in the installation of all electrical equipment, and is the basis for safe operation.
2, before installing LED buried lamps, we should first sort out all kinds of components used for lamps and lanterns. LED buried lights are special landscape LED lamps buried underground, once installed with fewer parts to want to re-install is very troublesome. So you should be ready before you install it.
3. Before installation of LED buried lamp, a hole should be digged according to the shape of the embedded part, and then the embedded part should be fixed with concrete. The embedded parts play the role of isolating the LED buried lamp main body and the soil, and can ensure the service life of the LED buried lamp.
4. Before the installation of LED buried lamp, an IP67 or IP68 wiring device should be provided for connecting the external power input to the power cord of the lamp body. Moreover, the power line of LED buried lamp requires a water-proof power line certified by VDE to ensure the service life of LED buried lamp.
| General Information | Name | LED Underground Light | |
| Model No. | KSL-DM-B025 | ||
| Light source | High power | ||
| LED Light Source | Bridgelux, Epistar, and whatever you want | ||
| Chip | High power | ||
| Warranty | 2 years, 3 years and 5 years optional | ||
| Electrical Information | Power(W) | 5W | |
| Voltage | AC85-265V 50-60Hz, 12V/24V | ||
| Driver efficiency | >90% | ||
| Power factor | 0.95 | ||
| Optical Information | Luminous flux(lm) | More than 540 | |
| Luminous efficacy(lm/w) | 90-110lm/w | ||
| CRI | 80 | ||
| Color temperature | 2700K-7200K, Red, Green, Blue, RGB | ||
| LED quantity(PCS) | 5 | ||
| Beam angle | 5/15/25/30/45/60/90/120 Deg | ||
| Lifetime | 50000 hours | ||
| Mechanical Information | Housing material | Aluminum, stainless steel 304 316 | |
| Lens material | PC | ||
| Ambient temperature | -40℃~50℃ | ||
| Working temperature | <60° | ||
| Storage temperature | -40℃~50℃ | ||
| IP Rating | IP65 | ||
| Installation | Φ100 | ||
| Assesories | Embedded parts, wire | ||
