Display Reading OEM Pressure Sensor PT205 Intrinsically Safe Explosion Proof
Feature
● With LED/LCD display
● Imported silicon sensor chip employed
● Perfect long term stability
● CE certificate
● OEM service provided
● Sillicon sensor cell employed
Applications
● Industrial process control
● Energy and water treatment
● Liquid pressure system and switch
● Pipeline pressure testing
Description

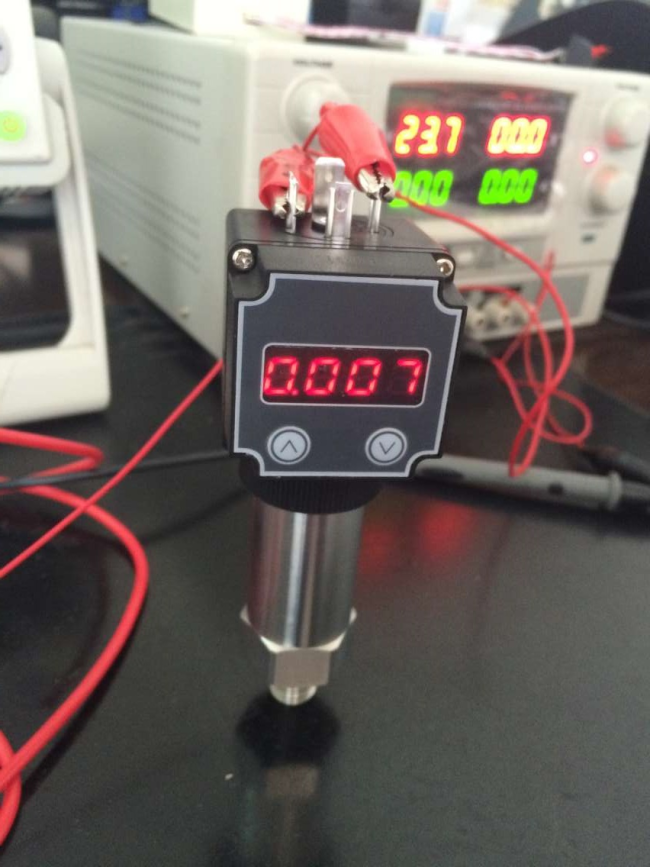

PT205 series of pressure transmitter is a standard and most popular transmitter applied in air and liquid pressure measuing with LED/LCD display.
The products are made of stainless steel. the pressure sensing elements chips are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates. Customized structures and output formats can be designed according to special application requirements .
Speifications
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~2...1000bar |
| overload pressure | 150%FS |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V |
| accuracy | 0.5%FS (standard) |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
| long term stability | <0.25%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~70°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+120°c |
| temperature coefficient of zero | 0.3%FS/10°c |
| temperature coefficient of span | 0.3%FS/10°c |
| insulation resistance | 100MΩ@ 50VDC |

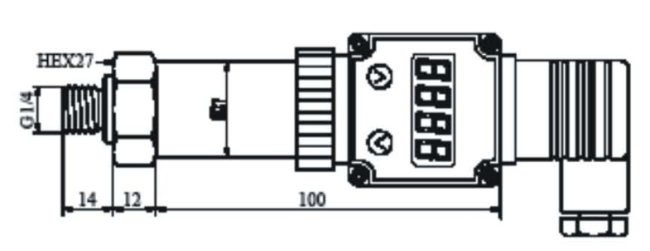

| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| material of housing | 1Cr18Ni9Ti |
| weight | 180g |
FAQ
1.Q: How long is the delivery?
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18month
5.Q: How can I visit your factory?
-- Fly to Xian Yang air port, it’s our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.
Ordering guide:
In order to recommend the suitable sensor, please kindly advise us the following information
1..What is your testing medium ? oil, water, gas, waster water, or others.
2.Working temperature of the sensor ? -40°C~100°C or others
3.Pressure range ? -1-0bar,0-1bar,0-16bar,0-40bar,0-100bar,0-600bar or others
4.Output signal? 4-20mA, 0-5V ,0.5-4.5V,0-10V,RS485 or other
5.Electronic connection ? DIN43650 ,Packard, Aerial plug, direct cable or others.
6.Screw ? M20×1.5,G1/4,G1/2,R1/2,NPT1/2
