Wireless Submersible Pressure Transducer With LCD Real - Time Display Button Operated

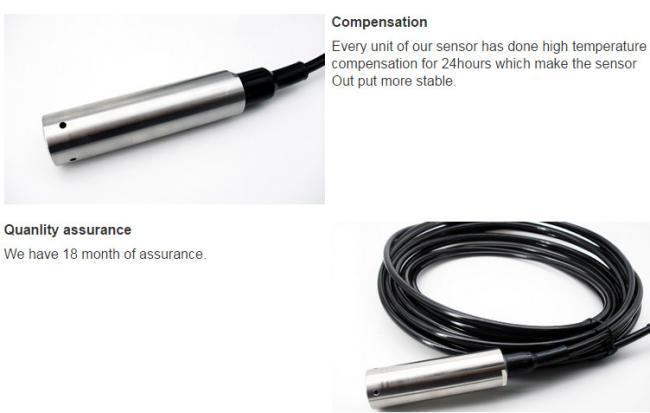

Submersible pressure transducer PL350 water level sensor wireless
Feature
● GPRS network wide range application
● LCD real-time display
● The power supply reverse connect protection
● Upper and lower limit alarm function
● Networked automatic calibration,Broken network
automatic reconnection
● Button operation, can configure the instrument
●Web side view and remote configuration instrument,
support SMS query data
●With functions of shockproof, moisture-proof, adapt to
the outdoor environment
Applications
● Hydraulic monitoring
● Water pipe pressure,
● high pool level
● Environmental parameter detection
Description
PL350 intelligent wireless pressure transmitter is a low-power, with intelligent wireless communications instruments, advanced industrial-grade MCU as the core, high-quality sensor for the collection front-end,
combined with industrial-grade wireless GPRS data module, the use of China Mobile's mature GPRS network, to achieve the field instrument data to the cloud wireless transmission. The instrument reports the data according to the set interval, customers through the Web page to achieve remote instrument configuration and data access, upload and distribution of data are stored in the database, to facilitate the latter part of the query.Through the Internet PC or mobile terminal to access the relevant Web site to obtain instrument data and to achieve the collection of data statistics, analysis, form report and data curves, with intuitive, accurate and efficient features.
Speifications
| pressure medium | liquid compatible stainless steel |
| pressure ranges | 0~3 m(diesel) |
| overload pressure | 150%FS |
| output signal | 4~20mA, 0.5 ~4.5V, 0~5V, |
| accuracy | 0.5%FS (standard) |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
| long term stability | 0.2%FS/year |
| Power supply | 10VDC -35VDC 3.6VDC(battery supply) |
| compensated temperature range | -20~80°c |
| operating temperature range | -25~+85°c |
| storage temperature range | -25~+85°c |
| temperature coefficient of zero | 1.5%FS (Max) |
| temperature coefficient of span | 1.5%FS (Max) |
| communication frequency band | 2.405GHz～2.480GHz |
| working time | 180s～60000s |
| insulation resistance | 100MΩ@ 250VDC |
| Process connection | G1/4 or others |
| Protection grade | IP65 |
| material of wetted part and housing | 1Cr18Ni9Ti |

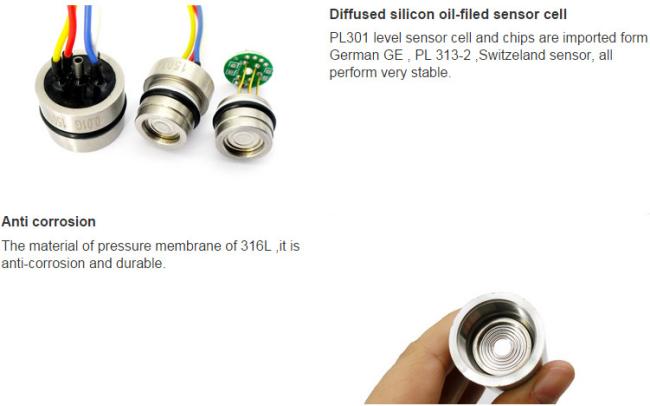

| material of pressure membrane | 316L |
| Response time | 1ms |
