Atech Submersible Pressure Transducer PL304 Compensated Temp. Range 0~60°C
Submersible pressure transducer PL304 armoring level pressure sensor for gasoline
Feature
● Measuring range 0~0.5...20mH2O
● All metal armoring type
● Fully welded structure
● CE certificate
● Anti-corrosive ability
● Intrinsically sate ,explosion proof
Applications
● Gasoline level measurement
● Liquid measuring for petroleum ,metallurgy
● Gasoline Tank level monitoring
● Vehicle fuel
Description

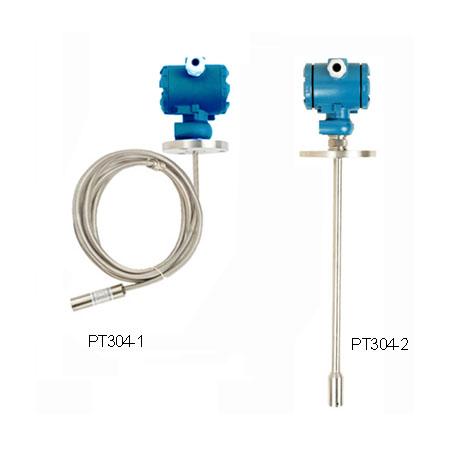

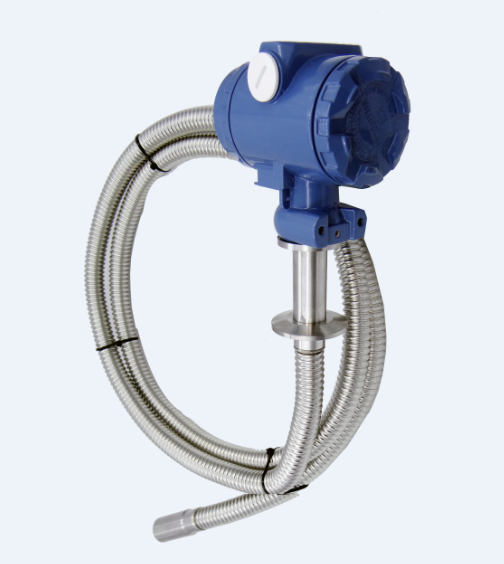

PT304E series level sensor is designed especially for gasoline and petroleum, for the molecule of the gasoline and petroleum is so small, they will sink into the PE or PUR cable, will damage the sensor. so we use the flexible 316SS tube protect the PUR cable. During the long time application testing , the sensor performs excellent . PL304E featured in accurate test and durable usage, and stable performance. It can not only be installed on various occasions requiring precise level measuring of gasoline, diesel, water and hydraulic oil, etc, but also be Application for measuring of various non-conductive liquids.
Sensor Part sealed in stainless steel house ,so it has strong anti-Jamming capability . Circuit Part sealed in Junction box which easy for adjustment
Speifications
| pressure medium | liquid compatible stainless steel |
| pressure ranges | 0~0.5 m H2O...20 m H2O |
| overload pressure | 150%FS |
| output signal | 4~20mA, 0.4 ~4.5V, 0~10V, RS485, Hart |
| accuracy | 0.5%FS (standard) |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
| long term stability | 0.2%FS/year |
| supply voltage | 24VDC ,12VDC ,5VDC |
| compensated temperature range | 0~60°c |
| operating temperature range | 0~+100°c |
| storage temperature range | -40~+125°c |
| temperature coefficient of zero | 1.5%FS (Max) |
| temperature coefficient of span | 1.5%FS (Max) |
| insulation resistance | 100MΩ@ 250VDC |
| Pressure connection | screw thread, throw-in type |
| Protection grade | IP68 |
| material of wetted part and housing | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| Response time | 1ms |
