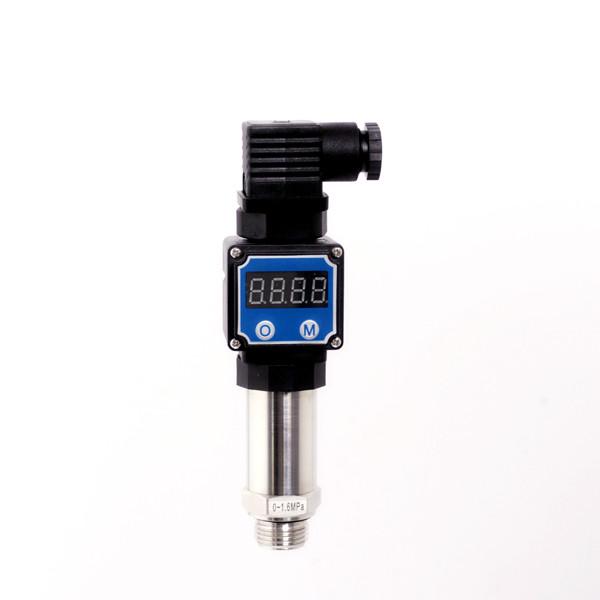

20Mpa OEM Ceramic Hydraulic Water Pressure Sensor
Atech OEM Ceramic Hydraulic System Air Water Pressure Sensor
Feature
·4~20mADC 2-wire current output;
·Digital compensation and non-linearity correction technics;
·-10°C~80°C digital wider temperature compensation;
·RS485 communication interface or HART communication protocol(optional);
·Netting available;
·Full stainless steel construction, compact size, light weight;
·Special requirement available;
·RoHS certificated;
·Intrinsic safe ex-proof version conforming to GB3836.4 ExiaⅡBT6 Ga Regulation;
· Ex-proof Certificate is issued;
Applications
● HVAC system
● Water filter
● Air conditioner control equipments
● Frequency water supply
● Water pump
● Building water supply
Description
PT201 series is made of high quality stainless steel structure, the core and the pressure sensor chips are imported from Germany, the use of digital calibration and compensation technology, and passed the safety certification and CE certification.Widely used in compressor, automobile, air conditioning and other field pressure measurement.
Speifications
| pressure medium | automatic system, Hydraulic and pneumatic control system |
| pressure ranges | 0~2...600bar |
| overload pressure | 150%FS |
| Broken Pressure | 300%FS |
| output signal | 4~20mA, 0~5V,0.5-4.5V , 0-10V , RS485 |
| accuracy | 1%FS , 2%FS (standard) |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~36V, 8-36V,6-24V, 12-24V ,5V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+100°c |
| storage temperature range | -40~+120°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | <1ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 ,R1/4,7/16-20UNF,M20*1.5,9/16-20UNF, NPT1/4. |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| material of housing | 1Cr18Ni9Ti,brass |
| weight | 90g |

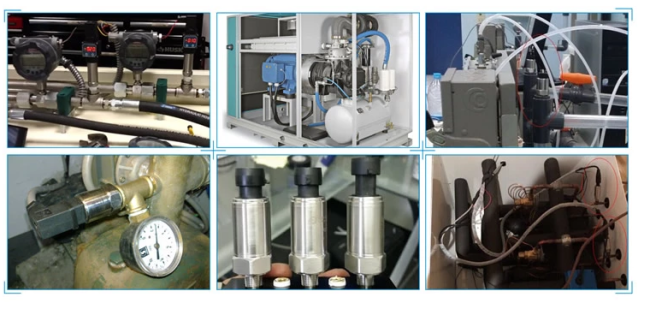

PT208 is widely used in:
Process control system Air compressor Refrigeration system
CNGSNG gas station Natural gas HVAC
Oil pumpdrilling Food industry Chemical industry
Hydraulic control system pump&water system Others
Price, Package, Service
1, Price : EXW, FOB, CFR Xi'an
2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
Packing:standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance
