PT 208 4-20mA 0-5V 0.5-4.5V high accuracy refrigerant water pressure transducer
PT 210 4-20mA 0-5V 0.5-4.5V high accuracy refrigerant water pressure transducer

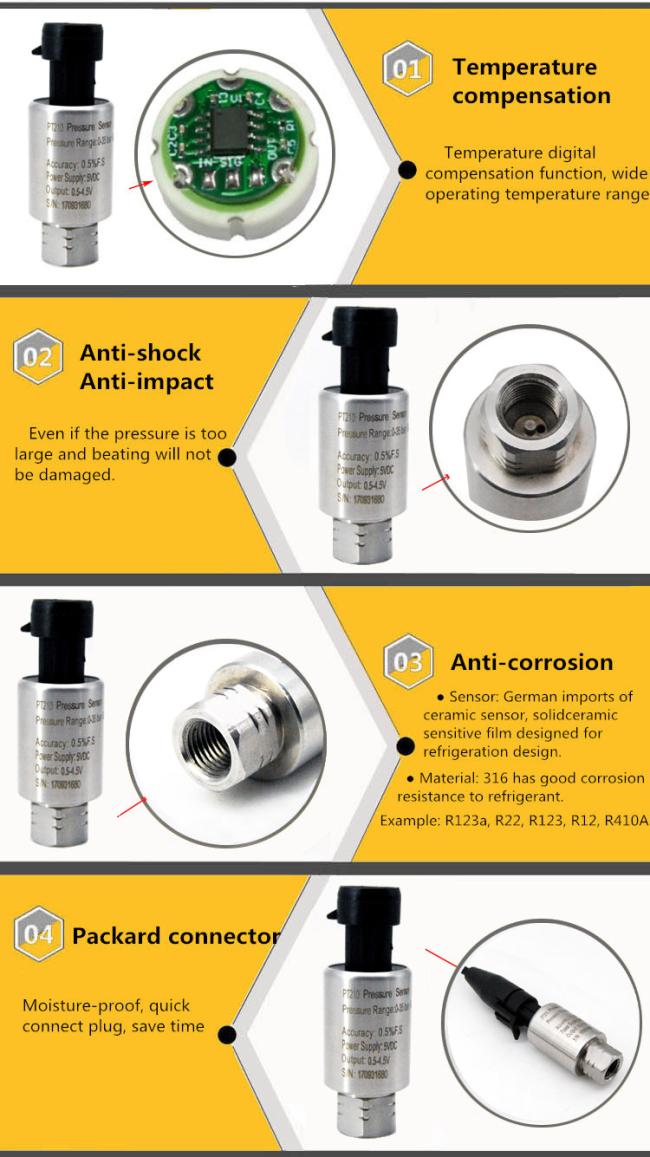

Feature
● MEMS technology
● Germany sensor employed
● Perfect long term stability
● Digital Calibration
● OEM service provided
● CE certificate
Applications
● HVAC system
● Water filter
● Air conditioner control equipments
● Frequency water supply
● Water pump
● Building water supply
Description
PT210 pressure transducer are applied in the refrigeration, compressor, engine fuel pressure, hydraulic pressure and gas pressure industries fields, which is adopt the Germany Ceramic piezoresistive technology and the advanced circuit design to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment. Its pressure chamber is made of ceramic and with high quality Japan CR or O-rings, free of leakage troubles. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the transmitter and the transmitter is featured with the strong interference resistance, wide temperature compensation scope and flexible & various output forms, etc. The series products provide several optional pressure connectors and electric output forms for customers.
Speifications
| pressure medium |
refrigerant water pressure transducer |
| pressure ranges | 0~2...600bar |
| overload pressure | 150%FS |
| Broken Pressure | 300%FS |
| output signal | 4~20mA, 0~5V,0.5-4.5V , 0-10V , RS485 |
| accuracy | 1%FS , 2%FS (standard) |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~36V, 8-36V,6-24V, 12-24V ,5V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+100°c |
| storage temperature range | -40~+120°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | <1ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 ,R1/4,7/16-20UNF,M20*1.5,9/16-20UNF, NPT1/4. |

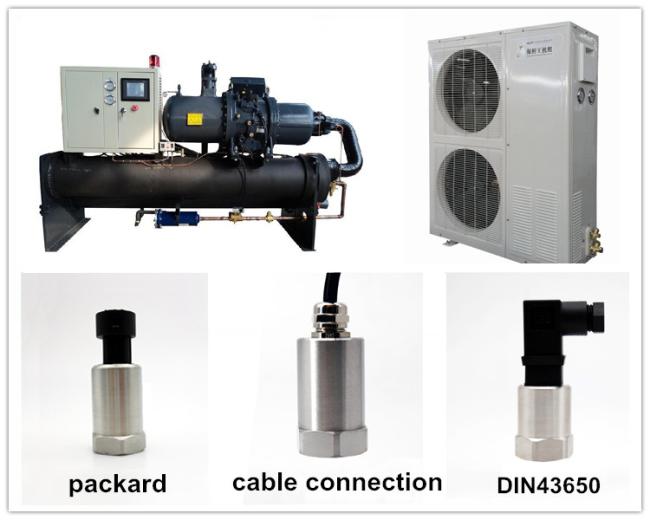

| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| material of housing | 1Cr18Ni9Ti,brass |
| weight | 90g |
Price, Package, Service
1, Price : EXW, FOB, CFR Xi'an
2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
Packing:standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance
