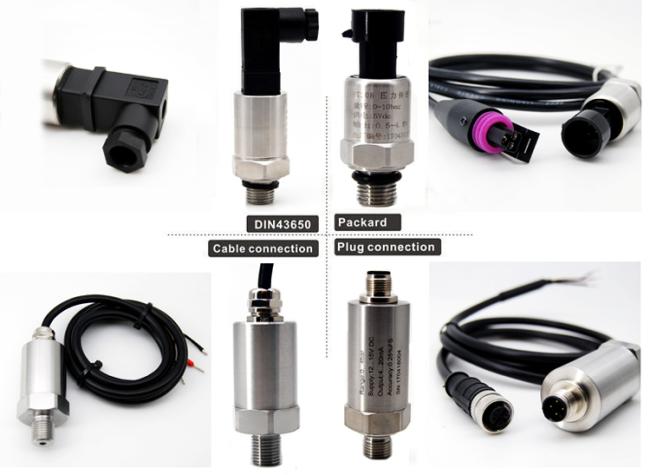

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
Hot Sales High Performance Micro 4-20ma Piezoelectric Hydraulic Water Air Oil Fuel Pressure Sensors
Feature
It's an advance pressure transducer than traditional mechanical pressure transducer.
2. ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
3. Light weight and small size, convenient to install and operate.
4. It has complete surge voltage protection function.
5. Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
Applications
● HVAC system
● Water filter
● Air conditioner control equipments
● Frequency water supply
● Water pump
● Building water supply
Speifications
| Measuring Range | -1000KPa~0-60MPa |
| Compensation Temperature | -10~70℃ |
| Output Signal | 4-20mA;1-5V;0-5V;00-20mA;Customization |
| Medium Temperature | Customization |
| Ambient Temperature | -40~85℃ |
| Enclosure Protection | IP65 |
| Pressure Type | Gauge pressure; Absolute pressure; Seal pressure |
| Temperature Effect on Zero | ±0.03%FS/℃ |
| Sensitivity Temperature Drift | ±0.03%FS/℃ |
| Overload Pressure | 200%FS |
| Long-term Stability | ≤0.2%FS/℃ |
| Natural Frequency | 5KHz~650KHz |
PT208 is widely used in:
Process control system Air compressor Refrigeration system
CNGSNG gas station Natural gas HVAC
Oil pumpdrilling Food industry Chemical industry
Hydraulic control system pump&water system Others
