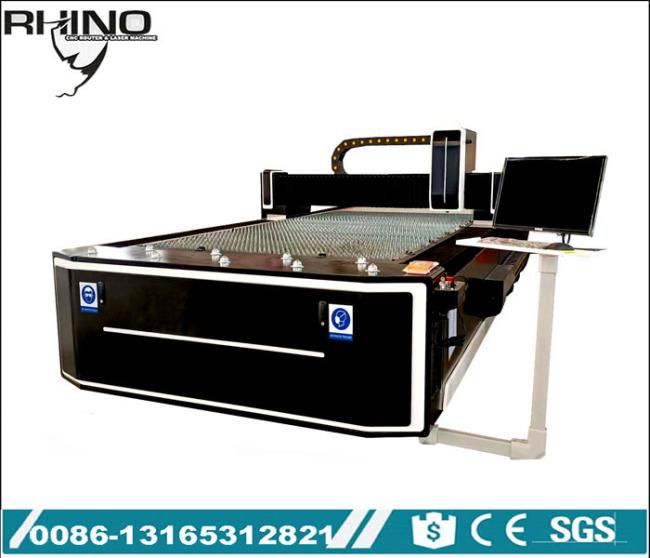

Aluminium Fiber Optic Laser Cutting Machine 2000W RF-1530-2000 for Metal Cutting

Suitable materials

Application Materials: Fiber Laser Cutting Equipment with IPG2000W is suitable for metal cutting like Aluminum 1mm-20mm,Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Features

1. Laser module protection

2. The laser module have warning sign to introduce the laser out avoid harm from direct laser；

3. The cover have ground connection to avoid hurt from leakage.

4. The operator need to wear suitable laser protection glasses throughout the operation；

5. Low maintenance:Fiber line transmission, no adjustment of optical path;

6. Easy operations:fiber line transmission no need reflect lens,save maintenance cost;

7. Super flexible optical effects:Compact design,easy to flexible manufacture requirements;

The process of cutting aluminum with a fiber laser cutting machine steps:

1. Preparing the machine: The fiber optic cutting machine is first prepared for cutting aluminum by adjusting the laser settings and ensuring that the machine is clean and free from any debris.

2. Loading the aluminum: The aluminum sheet or plate to be cut is loaded onto the machine's cutting bed, which is typically made of a honeycomb material that provides support during the cutting process.

3. Setting the parameters: The operator sets the cutting parameters, such as the cutting speed, power, and focus, based on the thickness of the aluminum and the desired cut quality.

4. Starting the cutting process: Once the parameters are set, the operator starts the cutting process by activating the laser. The laser beam cuts through the aluminum sheet in a precise and controlled manner, guided by the machine's computer software.

5. Completing the cut: Once the cutting process is complete, the operator unloads the cut aluminum sheet from the machine's cutting bed. The edges of the cut are smooth and clean, with minimal heat affected zone (HAZ) and no burrs.

Overall, the fiber optic cutting machine provides a highly accurate and efficient method for cutting aluminum, with the ability to produce complex shapes and high-quality cuts in a variety of thicknesses.

2000W Main Configuration Instructions

RF-1530-2000W Main Parameters

Processing capacity Description

Part of the process parameters

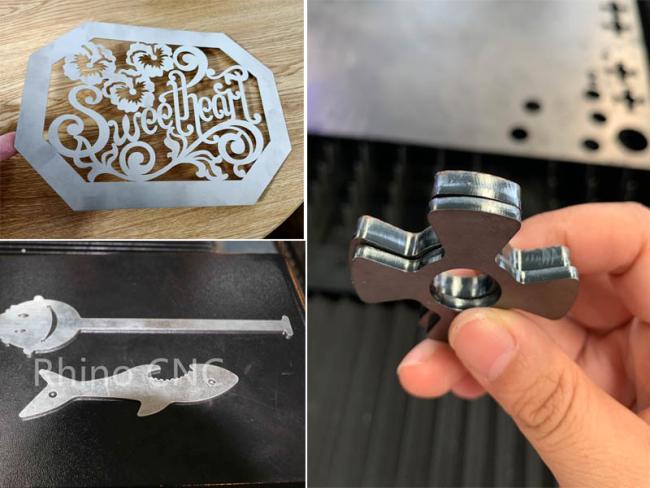

RF-1530-2000 Fiber laser cutting machine samples
