Silver Tin Plated Busbar / Oxygen - Free Hdhc Tinned Copper Busbar
Silver Tin Plated Busbar / Oxygen - Free Hdhc Tinned Copper Busbar
Tin Plated Busbar Application
Tin Plated Busbar are widely used in high current equipment like power generator,transformer,switchgear, because copper busbar have advantages as below:
1. Support to dissipate heat
2.. Make the connection of the high currency equipment more safe,more reliable,more convenient
3. The copper bus bars adsorb the noise when the high currency equipment works
4. Easy installation,high conductivity,strong fatigue resistance,long using life.
Tin Plated Busbar Details
| Material: T2 Red copper |
| Size: Customize |
| Item: Silver Tin Plated Busbar / Oxygen - Free Hdhc Tinned Copper Busbar |
| Product Name: Oxygen-free Tin Plated Busbar |
| Thickness: 3.0mm |
| Width: 15mm |
| Length: 292mm |
| Feature: Excellent electrical conductivity |
| Finish: Tin Plated |
| Color: Silver |
Tin Plated Busbar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| melting Point | 1083℃ |
Tin Plated Busbar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-4.0*270*1056 | 4.0 | 0.3mm+0.3mm | 270 | 1056 | 10.15 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
GUANGZHOU BAOGER MECHANICAL MANUFACTUER CO.,LTD
-
Guangzhou Baoger Mechanical Manufactuer Co.,ltd established in 2001, locates in Guangzhou, Meanwhile,we commit to development and production of busbar
-
OEM&ODM service for clients. Different material support, Exquisite processing, Multifarious surface treatment provide, Strick inspection, good service
-
Since 2001, Guangzhou Baoger Mechinery Manufacturing Co.,ltd was born. In 2012 we expand the scale and moved to Keda industry park with new equipment
-
Our team is more than 100 people, Including professional and experienced research & development, production, sales and pre-sale&after-sale department

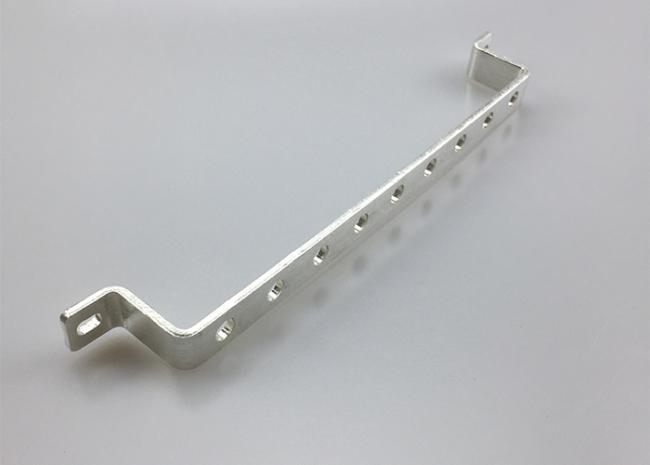

Tin Plated Copper Bus Bar Pictures
