High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56
Industry Slip ring high temperature 120°C through hole Ø96mm IP56
ECN-096-15P1-IP56 is one of the through hole industry slip rings in CENO company, there are 15 circuits for 5A, rating voltage is 380VAC/VDC and the through bore size is Ø96mm in this industry slip ring. The housing material is Aluminum alloy + stainless steel, contact material is precious metal, it can be working normally at the speed from 0 to 50rpm within the temperature -20°C ~ +120°C. Most of the specification is optional, such as current, circuits, voltage, Material, working speed and temperature etc according to CENO’s customer requests. Due to it’s suitable the high temperature and high humidity working environment, always used on the sewage treatment, food processing machinery, Filling machine, Marine platform.
Features
• Large inner diameter Ø96mm ,
• Resistant to high temperature and high humidity
• Most of specification is optional
Applications
• Winding machine
• sewage treatmen
• Marine platform
• Automation in industry
Optional
• Circuit number & Current
• Working speed
• Protection grade
• Signal type & Material
Specification
|
ECN096-15P1-IP56 |
|
| Current & Circuits | 15 circuits * 5A |
| Rating Voltage | 380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistant float | Max 30mΩ (50rpm) |
| Lead wire size | Guest supply |
| Lead wire length | Rotor : 8000mm; Stator : 5000mm |
| Operating speed | 0~50rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy + Stainless steel |
| Working temperature | -20°C ~ +120°C |
| Working humidity | <60% |
| Protection grade | IP56 |
| Installation way | Fix the rotor end to the main shaft guest supplied with screws |
| Through hole diameter |
Ø96mm |

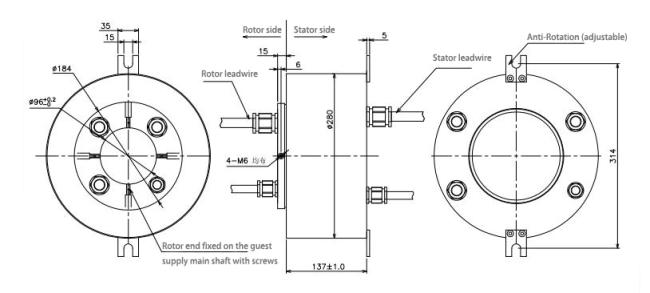

Outline drawing
