Industry Electrical Slip Rings 8 Circuits 5A Inner Bore 25.4mm Precious Metal Contact
Slip rings electrical industry with 8 circuits for 5A inner bor 25.4mm
ECN025-08P1 is an standard industry slip ring with through hole size Ø25.4mm and the external diameter Ø86mm from CENO. There are 8 circuits for 5A power and the rating voltage is 0~380VAC, it’s working stably at speed of 0~300rpm. In CENO the electrical slip ring is economical compare with the RF slip ring, Fiber optical rotary joint or integrated slip rings. Most of the parameter is optional according to customer’s request. Such as the bore size, IP grade, current and circuits, Voltage, operation speed and temperature etc.
Features
- Economical & long life
- Most of the parameter is optional and transmit stably
- Install easily
Applications
- Automatic machine
- Lithium battery equipment
- Turntable plat
- Motion simulator
Optional
- Circuit number & Current
- Working speed
- Protection grade
- Operating temperature
Specification
|
ECN025-08P1 |
Specification |
| Current & Circuits | 8 circuits * 5A |
| Rating Voltage | 0~380VAC/DC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MQ@500VDC |
| Contact resistance float | ≤70mΩ |
| Lead wire length |
Rotor wire : 300mm Stator wire : 300mm |
| Operating speed | 0~300rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% below |
| IP protection grade | IP51 |
| Inner diameter | Ø25.4mm |
| External diameter | Ø86mm |
| Lead wire size | AWG22# Tin coated Teflon®UL |
| Install way | Fix the rotor side to the guest main shaft with screws |

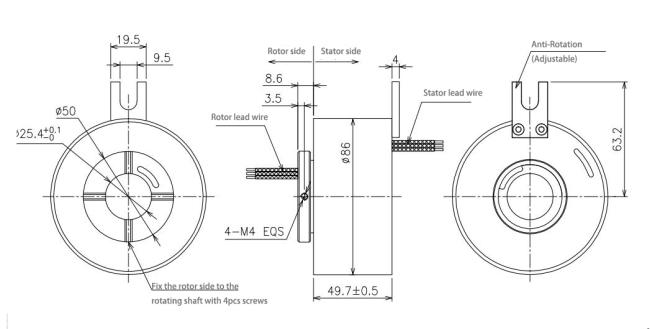

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
