1 Channel Fiber Optical Rotary Joint With Pedestal Working Speed 30rpm
1 channel Fiber Optical Rotary Joint with pedestal working speed 30rpm
ECN000-02P1-01F is a fiber optic rotary joint also named FORJ from CENO electronics, the FORJ is fixed on the pedestal with screws in this slip ring assembly. There are 2 circuits for 3A Power and 1 channel fiber optic signal, the fiber optic signal is divided into single mode and multi mode and the channel number is optional from 1 to 50 channels. Working speed can reach 2000rpm as customers’ request. Non-contact technology is the advantage of this series of rotary joints, mainly apply to the wind power generator, security camera, medical equipment or Aerospace etc.
Specification
|
ECN000-02P1-01F |
Specification |
| Current & Circuits | 2 * 3A, 1 * Fiber optic |
| Rating Voltage | 0~300 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥300MQ@300VDC |
| Electrical noise | ≤70mΩ (60rpm) |
| Lead wire size | AWG22#Tin coated Teflon UL |
| Operating speed | 0~30rpm |
| Contact material | Precious metals |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60%(20°C) |
| IP protection grade | IP54 |
Features
- Non-contact technology
- Low contact resistance
- Install easily
- Transmit stably
Applications
- Automatic machine
- Tripod head
- Measuring instrument
- High speed ball camera
Optional
- Circuit number & Current
- Working speed
- Protection grade
- Fiber type & connector

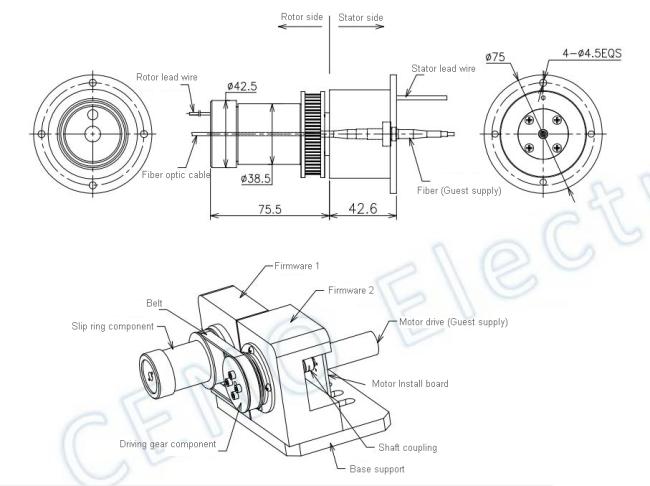

Outline drawing
