4 Channels Fiber Optical Rotary Joint With Integrated Power And 485 Signal
4 Channels Fiber Optical Rotary Joint With integrated power and 485 signal
This is a customized non-standard integrated slip ring with high protection from CENO electronics, there are 3 circuits for 50A, 3 circuits of 20A, 2 circuits for 10A, 2 rings for 485 Signals and 4 channels for single mode of fiber optic. Fiber optic rotary joint parts provide the best solution for data transmission in the rotary connection system. Non-contact technology is the advantage of this series of rotary joint. It’s designed for specific applications, mainly apply to the Opto electronic pod, electric crane, All fiber optic hydrophone and Port Machinery.
Specification
|
ECN000-0350-03P4-02P2-04S-04F-GY-IP67 |
Specification |
| Current & Circuits | 3*50A, 3*20A, 1*PE, 2*10A, 2*485Signal |
| Rating Voltage | 0~3300 VAC/VDC |
| Dielectric strength |
≥10000VAC@50Hz (3300VAC) ≥1000VAC@50Hz (220VAC) |
| Isolation resistance |
≥1000MΩ@5000VDC ≥1000MΩ@500VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Lead wire length |
Rotor : 5000mm Stator : 5000mm |
| Operating speed | 0~150rpm |
| Contact material | Precious metals |
| Housing material | Aluminum alloy + stainless steel |
| Working temperature | -30°C~+80°C |
| Working humidity | 90%(20°C) |
| IP protection grade | IP67 |
| Rotation Torque | 3.5N*m |
| Fiber type | Single mode |
| Channel | 4 |
| Wave length | 1310 / 1550nm |
| Insert loss | ≤4.0dB |
| Return loss | ≥54dB |
| Connector | FC / APC |
Features
- Non-contact technology
- Low contact resistance
- Install easily
- Transmit stably
Applications
- Automatic machine
- Port Machinery
- Opto electric pod
- Electric crane
Optional
- Circuit number & Current
- Working speed & temperature
- Protection grade & materials
- Connector and wavelength

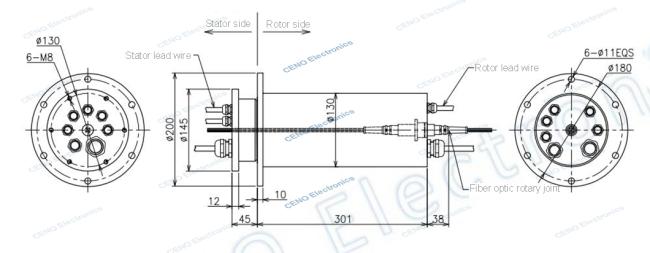

Outline drawing
