Type Thermocouple Signal Through Hole Slip Ring With 10000rpm High Speed
4 T type Ethernet signal through hole high speed slip ring 10000rpm slip ring
ECN012-08S-GS is a through hole & high speed slip ring with 4group of T type Thermocouple signal from CENO electronics. It can be transmitting Thermocouple signals stably at the speed of 0 to 10000 rotation per minute. Due to the stable transmission, no packet loss, non string code, low loss and low torque and compact structure, it’s mainly used on the communication system, turntable test equipment, Non-destructive detector or inspection equipment.
Features
- High speed & non string code
- Stable transmission and no packet loss & low torque
- Compact structure easy to installation
Applications
- Automatic machine
- Non destructive detector
- Inspection equipment
- Turntable test equipment
Optional
- Circuit number & Current
- Working speed & temperature
- Protection grade & materials
- Transmission signals
Specification
|
ECN012-08S-GS |
Specification |
| Current & Circuits | 4group * T type Thermocouple signal |
| Rating Voltage | 0~24 VAC/VDC |
| Dielectric strength | ≥100VAC@50Hz |
| Isolation resistance | ≥50MΩ@100VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Operating speed | 0~10000rpm |
| Contact material | Precious metals |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | Max60% |
| IP protection grade | IP51 |
| Through hole size | Ø12mm |
| Lead wire size | T type Thermocouple signal |
| Lead wire length |
Rotor : 1000mm Stator : 3000mm |
| Installation way | Rotor side fixed on the guest shaft with screws |

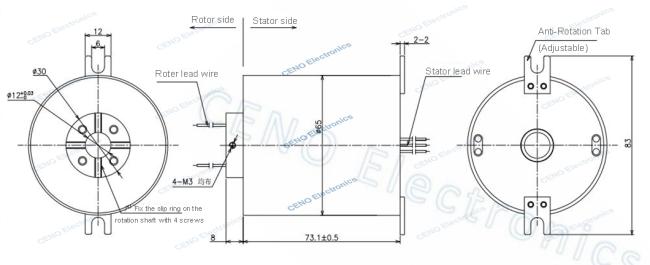

Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
