BHCN-C-10P-03EM is a central collector slip ring from CENO electronics, it also called high current slip ring, large power slip ring, carbon brush slip ring or marine slip ring. There are 10 circuits for 130A electrical power and 3 channel for 100M Ethernet signal. It works stably at the speed of 0~15rpm with low electrical noise 30mΩ and with high protection grade IP65. Often apply to the harsh environment such as the marine machinery, mining equipment, engineering machinery or cable drum or reel.
Features
- Excellent weather resistance
- High electrical safety
- Low VOC emissions and low maintenance cost and good economic returns.
Applications
- Automatic machine
- Marine machinery
- Mining equipment
- Offshore platform crane
Optional
- Circuit number & Current
- Working speed
- Materials
- Protection grade
Specification
|
BHCN-C-10P-03EM |
Specification |
| Current & Circuits |
Electric Power & Ethernet Signal |
| Rating Voltage | 0~650 VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MQ@500VDC; ≥100MQ@300VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Lead wire length |
As request |
| Operating speed | 0~15rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60%(20°C) |
| IP protection grade | IP65 |
| Installation way | Flange installation |

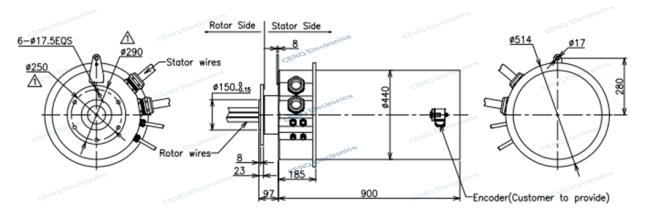

Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
