IP51 Integrated Slip Ring Combined Power Signal And Fiber Optic Rotary Joint
Integrated slip ring combined power signal and fiber optic rotary joint
ECN000-02P2-08S-04F is an integrated slip ring combined 2 circuits for 10A with 2 group for RS422 Signals and 4 channels for fiber optical from CENO electronics. This series of slip ring is a customized non-standards series, designed for specific applications, the circuits, channels Voltage, IP Protection grade, wave length are optional as different application. It has stable performance and a variety of functions, often apply to the photoelectric Pod, medical equipment, Aerospace and electric crane.
Specification
|
ECN000-02P2-08S-04F |
Specification |
| Current & Circuits | 2circuits*10A, 2 group*RS422 Signal |
| Rating Voltage | 0~220 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥500MQ@500VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
| Operating speed | 0~200rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -30°C~+65°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Lead wire size |
AWG17# Tin coated Teflon 4 core twisted shield wire |
| Installation way |
Stator sde fixed by flange Rotor side drove by the screw bolt |
| Fiber | |
| Fiber type | SM |
| Channel | 4 |
| Wave length | 1310/1550nm |
| Insert loss | < 3.5dB |
| Return loss | ≥40dB |
| Withstand power | ≤ 23 dBm |
| Cable length | Rotor: 300mm, Stator:300mm |
| Contact type | LC |
Features
- Light weight & Compact size
- Low contact resistance
- Install easily
- Transmit stably
Applications
- Automatic machine
- Tripod head
- High speed ball camera
- Measuring instrument
Optional
- Circuit number & Current
- Working speed
- Protection grade
- Capsule size

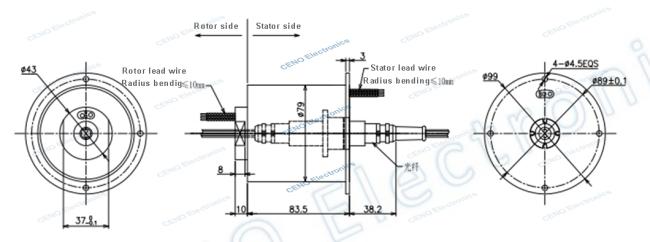

Outline drawing
