Megabit Ethernet Slip Ring 0 - 300rpm Low Electrical Noise For Industry Application
Megabit Ethernet Signal Slip Ring With Electric Power For Industry Application
ECN000-06P2-01EM is an Ethernet signal slip ring with low electrical noise from CENO Electronics, there are 6 circuits for 10A electrical power and 1 channel for 100M Ethernet signal. It can transmit 100M or 1000M Ethernet signal stably as different application and has no packet loss, no string code, low loss and ultra-long distance transmission. Mainly used on various automatic machines, such as filling machinery, wrapping machines, communication system etc.
Features
- Can combine various type & channels signal with power
- No electromagnetic interference between power and signal
Applications
- Automatic machine
- Turntable test equipment
- Measuring instrument
- Communication system
Optional
- Circuit number & Current
- Working speed
- Protection grade
- Signal type Megabit or Gigabit
Specification
|
ECN000-06P2-01EM |
Specification |
| Current & Circuits | 6circuits*10A, 1circuits*100M Ethernet |
| Rating Voltage | 0~380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MQ@500VDC; ≥100MQ@300VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Lead wire length |
Rotor : 1000mm Stator : 2000mm |
| Operating speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| IP protection grade | IP51 |

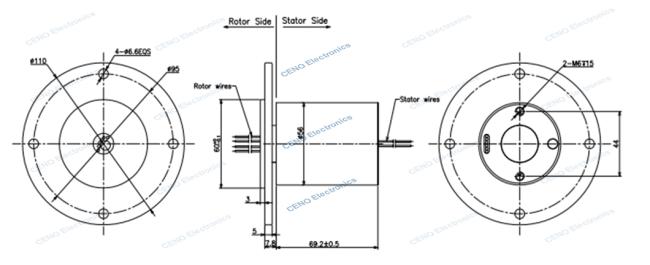

Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
