IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment
IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment
ECN040-22P-58S-04EG-IP67 is a high protection water proof Gigabit Ethernet Slip ring for industry application from CENO Electronics. It’s non-standard slip ring with 10circuits for 70A electric power, 8 circuits for 40A, 4circuits for 25A, 40circuits for 2A, 3circuits for RS422, 4circuits for 1000M Gigabit Ethernet and with IP67 high protection grade even to military standards IP68. Due to it’s high protection and combined large Ethernet signal with various electric power, most apply to the Boats and ship machinery, Port machine, Bear or milk equipment and Communication systems.
Features
- Can combined multiple signals and various currents
- No electromagnetic interference between current & signal.
- High protection IP67
Applications
- Automatic machine
- Communication systems
- Boats and ship machinery
- Port machine
Optional
- Circuit number & Current
- Channels & Ethernet type
- Materials
- Protection grade
Specification
|
ECN040-22P-58S-04EG-IP67 |
Specification |
| Current & Circuits |
10circuits*70A, 1circuits*PE, 8circuits*40A, 4circuits*25A, 40circuits*2A, 3circuits*RS422, 4circuits*1000M Ethernet (BER Error rate:10E-12) |
| Rating Voltage | 0~400VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz ≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@1000VDC ≥100MΩ@100VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Operating speed | 0~50rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -30°C~+80°C |
| Working humidity | 90% |
| IP protection grade | IP67 |
| Through hole size | Ø40mm |
| External diameter | Ø220mm |
| Lead wire size |
16mm² wire AWG10#12# Tin coated Teflon®UL 40*0.3mm² wire 4 core Twisted Shield wire Cat5e net wire |
| Lead wire length |
Rotor : 3000mm Stator : 3000mm |
| Installation | Flange installation |

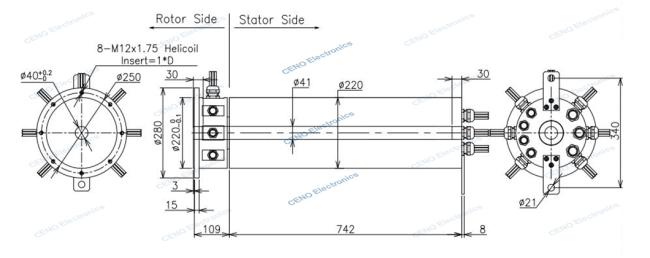

Outline drawing
