Profibus Signal Industrial Slip Ring Through Hole 95mm For Intelligent Equipment
Profibus Signal Slip Ring With Through hole 95mm For Industry Application
ECN095-03P4-04S is an integrated through hole slip ring including 2 circuits electric power and 4 circuits profi-bus signal from CENO Electronics. As an opened, bidirectional, multi-station and all digital communication system, The profibus has been developed deeply and wildly applied in automation machinery in recent years. CENO’s profibus series product can transmit varies RS, NET and bus signal that according to customer special request, It’s transmitting data stably, and low loss, no string code, no packet loss. For more information about how CENO’s Profibus slip ring can be tailored to fit your specific application, pls contact us
Features
- Can combined multiple signals and various currents
- Transmit servo motor current & encoder control signal together
- Install easily & transmit stably
Applications
- Automatic machine
- Communication systems
- Measuring instrument
- Building automation
- Intelligent equipment
Optional
- Circuit number & Current
- Channels Ethernet type
- Materials
- Protection grade
- Working speed
Specification
|
ECN095-03P4-04S |
Specification |
| Current & Circuits | 3circuits*20A, 4circuits*Profi-bus Signal |
| Rating Voltage | 0~115VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Operating speed | 0~350rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Through hole size | Ø95.25mm |
| Lead wire size |
AWG12# Wire Teflon®UL 4 core Twisted Shielded wire |
| Lead wire length |
Rotor : 5000mm Stator : 5000mm |
| Rotation Way | Fix up stator side with anti-rotation side shaft drives rotor running |

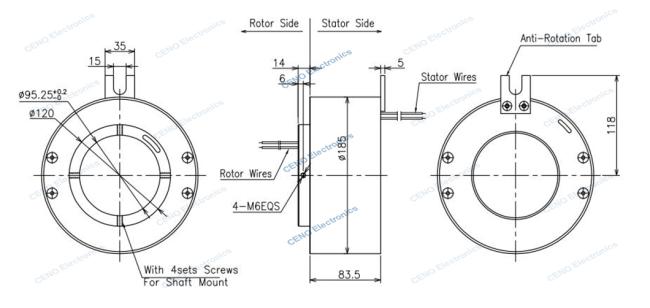

Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
