100M Megabit Ethernet Slip Ring With Flange For Industry Applications 20rpm
100M Megabit Ethernet Slip Ring With Flange For Industry Applications
ECN000-09P-51S-01EM is a new product often named 100M Megabit Ethernet Slip Ring that combine electric power, signal and Ethernet for the low temperature application from CENO Electronics. There are 8circuits for 20A, 51 circuits for 2A, and 1circuit for 100M Megabit Ethernet. It can be working stably at the speed of 0~20rpm in the temperature -40°C~+85°C. Most of parameters are optional,for example the operating speed, temperature, circuits & current, material or IP grade etc are designed according to the customer’s special request. For more information about how CENO’s slip ring can fit your specific application, please contact us freely.
Features
- Can combined multiple data and various currents
- No electromagnetic interference between current & signal.
- Install easily & transmit stably
Applications
- Automatic machine
- Communication systems
- Turntable test equipment
- Filling machine
- Smart housing system
Optional
- Circuit number & Current
- Channels Ethernet type
- Housing & contact Materials
- Protection grade
- Working speed
Specification
|
ECN000-09P-51S-01EM |
Specification |
| Current & Circuits | 8 circuits*20A, 51 circuit*2A, 1circuits*PE; 1circuits* 100M Megabit Ethernet |
| Rating Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥500V@50Hz |
| Isolation resistance |
≥500MΩ@500VDC (Power) ≥100MΩ@300VDC (2A) |
| Contact resistance | ≤10mΩ ( 50rpm ) |
| Operating speed | 0~20rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -40°C~+85°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Lead wire size |
AWG24# Wire Teflon® UL AWG12# Single core twisted pair shield wire 2 cores twisted pair shield wire 4 cores twisted pair shield wire 8 cores twisted pair shield wire CAT5e |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
| Installation Way | Guest main shaft contact the stator side with screws |

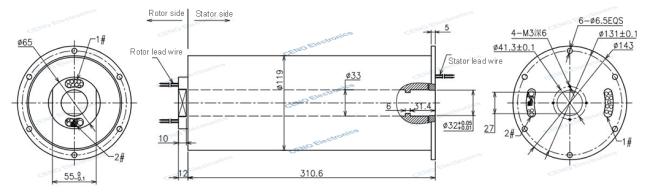

Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
